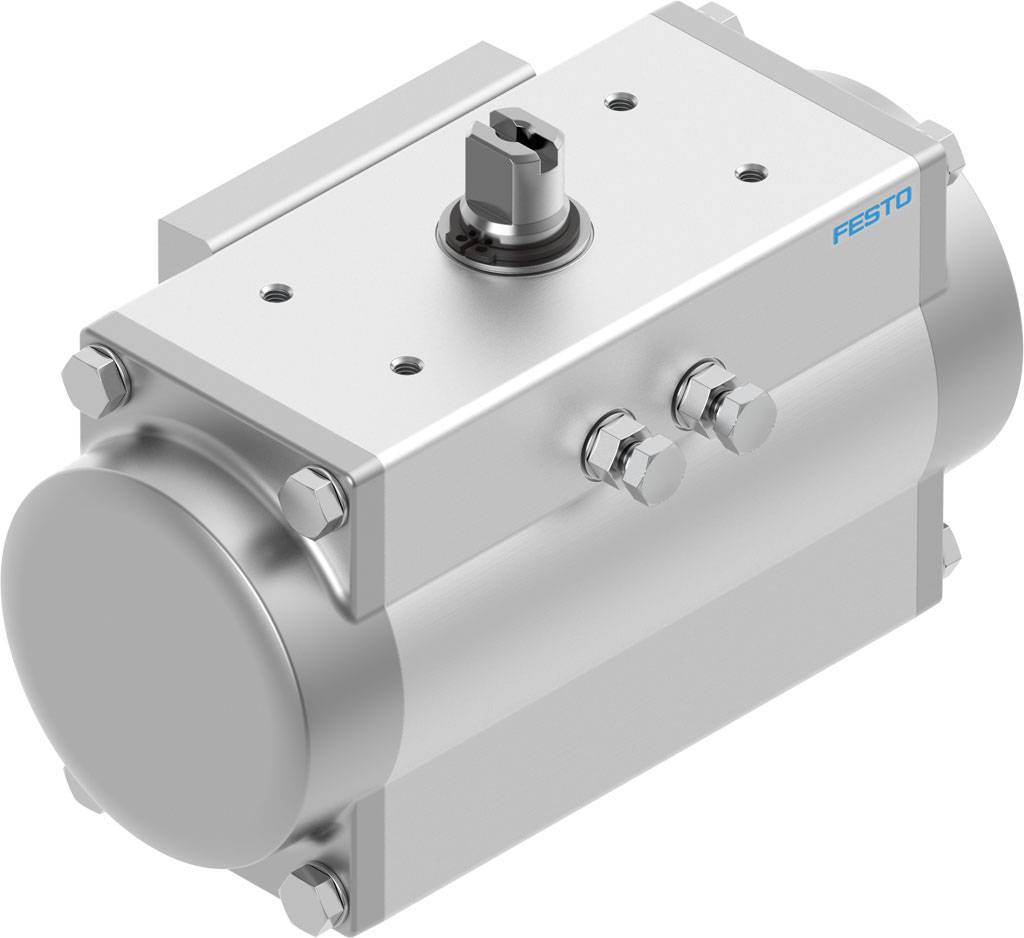

FESTO Rotary actuator 8047636 DFPD-40-RP-90-RS60-F04 Enclosure material: Aluminium wrought alloy 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 168.06 / piece)
€ 168.06
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Swivel angle: 90 deg
- Design: rack/pinion
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Rotary actuator
- Max. operating pressure
8 bar
- Manufacturer part #
8047636
- Weight
2180 g
- Connection
G1/8
- Size
40
- Min. operating pressure
2 bar
- Operating medium
Compressed air
- Sealant
NBR
- Enclosure material
Aluminium wrought alloy
- Piston rod material
Aluminium (die-cast)
- Material
Aluminium wrought alloy
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2124964 FESTO Rotary actuator 8047636 DFPD-40-RP-90-RS60-F04 Enclosure material: Aluminium wrought alloy 1 pc(s)
Description
Swivel drive DFPD-40-RP-90-RS60-F04 Size Actuator = 40, flange drilling pattern = F04, swivel angle = 90 deg, adjustment range end position at 0° = -5 - 5 deg, adjustment range end position at 90° = -5 - 5 deg
