FESTO Screw fastener 186114 QS-G3/8-12-I External thread: G3/8" Pipe diameter: 12 mm Thread size: G3/8" 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
Only 5 Piece(s) available
Highlights & Details

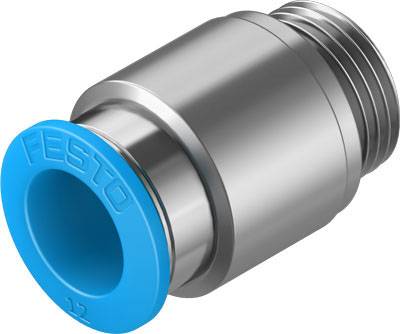

Screw fastener QS-G3/8-12-I
Technical specifications
- Weight 34 g
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Screw fastener
- Pipe Ø
12 mm
- Thread size
G3/8"
- External thread
G3/8"
- Manufacturer part #
186114
- Type
Plug-in gland QS-G3/8-12-I External thread with hexagon socket. Size = Standard, nominal width = 8.4 mm, seal type on the screw-in stud = sealing ring, mounting position=any, container size = 10
- Max. operating pressure
6 bar
- Min. operating pressure
-0.95 bar
- Material
Brass (Ni-plated)
- Max. ambient temperature
80 °C
- Min. ambient temperature
-10 °C
