FESTO Screw fastener 190673 QSY-M5-4 External thread: M5 Pipe diameter: 4 mm Thread size: M5 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
14-day return policy included
Highlights & Details

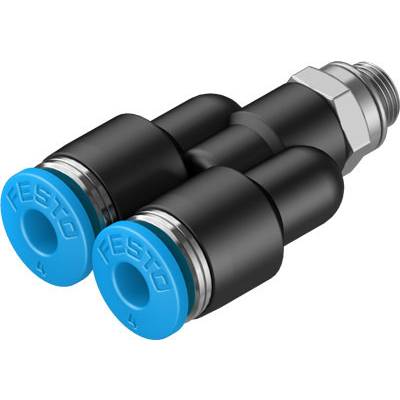

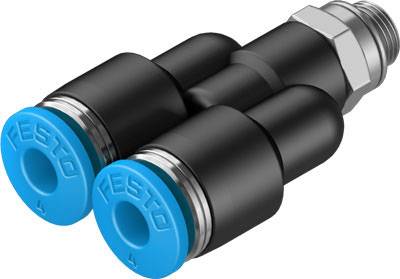

Screw fastener QSY-M5-4
Technical specifications
- Weight: 8 g
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Screw fastener
- Pipe Ø
4 mm
- Thread size
M5
- External thread
M5
- Manufacturer part #
190673
- Type
Y-plug-in gland QSY-M 5-4 360° can be aligned, external thread with hexagon. Size = Standard, nominal width = 2.4 mm, seal type on the screw-in stud = sealing ring, mounting position=any, container size = 10
- Max. operating pressure
6 bar
- Min. operating pressure
-0.95 bar
- Material
PBT
- Max. ambient temperature
80 °C
- Min. ambient temperature
-10 °C
