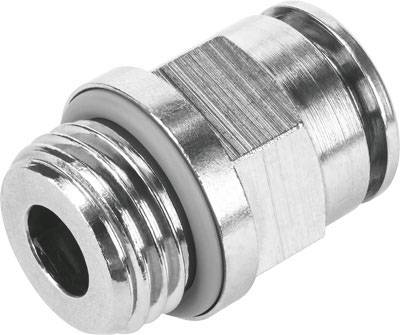

FESTO Screw fastener NPQH-D-G14-Q6-P10 578341 -0.95 up to 20 bar External thread G1/4"
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.18
10
7% = € 0.23
€ 2.95
25
10% = € 0.33
€ 2.85
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.18 / piece)
€ 3.18
plus VAT.
14-day return policy included
Highlights & Details
NPQH-D-G14-q 6-P10
Technical specifications
- Nominal width: 4mm
- Size: Standard
- Container size: 10
- Weight: 13.1 g
- Ambient temperature: 0 °C to +150 °C
- Max. Starting torque: 15 Nm
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Screw fastener
- External thread
G1/4"
- Type
Corrosion resistance class KBK: 3-strong corrosion stress
- Manufacturer part #
578341
- Material (details)
Nickel-plated brass, FPM
- Connection
G1/4, for Hose outer diameter 6 mm
- Max. operating pressure
20 bar
- Operating pressure (min.)
-0.95 bar
- Pressure range
-0.95 up to 20 bar
- Operating medium
Compressed air
Water
Documents & Downloads
Datasheet
Datasheet 1945498 FESTO Screw fastener NPQH-D-G14-Q6-P10 578341 -0.95 up to 20 bar External thread G1/4"
User & Safety Instructions
User & Safety Instructions 1945498 FESTO Screw fastener NPQH-D-G14-Q6-P10 578341 -0.95 up to 20 bar External thread G1/4"
Description
Plug-in gland NPQH-D-G14-q 6-P10 Size = Standard, nominal width = 4 mm, seal type on the screw-in stud = sealing ring, mounting position=any, container size = 10
