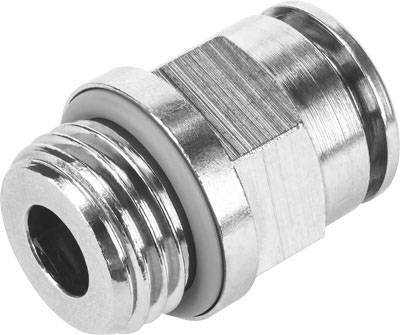

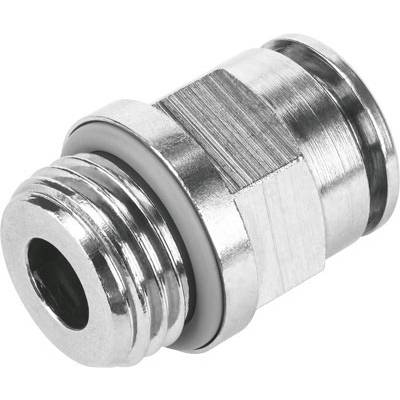

FESTO Screw fastener NPQH-D-G38-Q8-P10 578345 -0.95 up to 20 bar External thread G3/8"
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.77
5
6% = € 0.24
€ 3.53
10
9% = € 0.34
€ 3.43
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.77 / piece)
€ 3.77
plus VAT.
Only 5 Piece(s) available
Highlights & Details
NPQH-D-G38-q 8-P10
Technical specifications
- Nominal width: 6mm
- Size: Standard
- Container size: 10
- Weight: 20.6 g
- Ambient temperature: 0 °C to +150 °C
- Max. Starting torque: 25 Nm
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Screw fastener
- External thread
G3/8"
- Type
Corrosion resistance class KBK: 3-strong corrosion stress
- Manufacturer part #
578345
- Material (details)
Nickel-plated brass, FPM
- Connection
G3/8, for Hose outer diameter 8 mm
- Max. operating pressure
20 bar
- Operating pressure (min.)
-0.95 bar
- Pressure range
-0.95 up to 20 bar
- Operating medium
Compressed air
Water
Documents & Downloads
Datasheet
Datasheet 1945502 FESTO Screw fastener NPQH-D-G38-Q8-P10 578345 -0.95 up to 20 bar External thread G3/8"
User & Safety Instructions
User & Safety Instructions 1945502 FESTO Screw fastener NPQH-D-G38-Q8-P10 578345 -0.95 up to 20 bar External thread G3/8"
Description
Plug-in gland NPQH-D-G38-q 8-P10 Size = Standard, nominal width = 6 mm, seal type on the screw-in stud = sealing ring, mounting position=any, container size = 10
