FESTO Screw fastener NPQH-L-M5-Q6-P10 578277 -0.95 up to 20 bar External thread M5
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
7% = € 0.30
€ 4.31
10
9% = € 0.42
€ 4.19
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
Only 6 Piece(s) available
Highlights & Details
NPQH-L-M5-Q 6-P10
Technical specifications
- Nominal width: 3.5 mm
- Size: Standard
- Container size: 10
- Weight: 12.2 g
- Ambient temperature: 0 °C to +150 °C
- Max. Starting torque: 1.5 Nm
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Screw fastener
- External thread
M5
- Type
Corrosion resistance class KBK: 3-strong corrosion stress
- Manufacturer part #
578277
- Material (details)
Nickel-plated brass, FPM
- Connection
M5, for Hose outer diameter 6 mm
- Max. operating pressure
20 bar
- Operating pressure (min.)
-0.95 bar
- Pressure range
-0.95 up to 20 bar
- Operating medium
Compressed air
Water
Documents & Downloads
Datasheet
Datasheet 1940532 FESTO Screw fastener NPQH-L-M5-Q6-P10 578277 -0.95 up to 20 bar External thread M5
User & Safety Instructions
User & Safety Instructions 1940532 FESTO Screw fastener NPQH-L-M5-Q6-P10 578277 -0.95 up to 20 bar External thread M5
Description

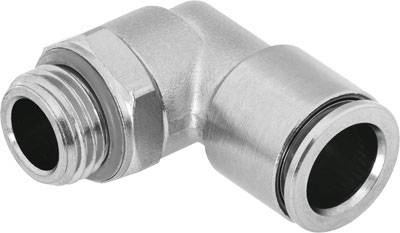

L-plug-in gland NPQH-L-M5-Q6-P 10 size = Standard, nominal width = 3.5 mm, seal type on the screw-in stud = sealing ring, mounting position=any, container size = 10
