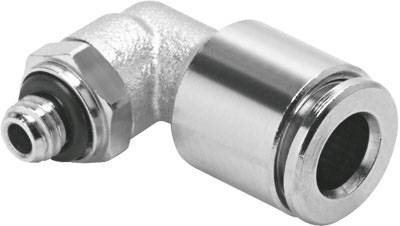

FESTO Screw fastener NPQM-L-M5-Q6-P10 558705 -0.95 up to 16 bar
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 3.77 / piece)
€ 3.77
plus VAT.
Only 9 Piece(s) available
Highlights & Details
NPQM-L-M5-Q 6-P10
Technical specifications
- Nominal width: 3.5 mm
- Size: Standard
- Weight: 11.9 g
- Ambient temperature: -20 °C to +70 °C
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Screw fastener
- Type
Class 1 - Low corrosion stress corrosion resistance: KBK
- Manufacturer part #
558705
- Material (details)
Nickel-plated brass, NBR
- Connection
M5, for Hose outer diameter 6 mm
- Max. operating pressure
16 bar
- Operating pressure (min.)
-0.95 bar
- Pressure range
-0.95 up to 16 bar
- Operating medium
Compressed air
Documents & Downloads
Datasheet
Datasheet 1940497 FESTO Screw fastener NPQM-L-M5-Q6-P10 558705 -0.95 up to 16 bar
User & Safety Instructions
User & Safety Instructions 1940497 FESTO Screw fastener NPQM-L-M5-Q6-P10 558705 -0.95 up to 16 bar
Description
L-plug-in gland NPQM-L-M5-Q6-P 10 size = Standard, nominal width = 3.5 mm, seal type on the screw-in stud = sealing ring, constructive design = Push-pull principle, Operating pressure complete temperature range = -0,95 - 16 bar
