FESTO Screw fastener QSLL-1/2-10 190664 -0.95 up to 6 bar
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
14-day return policy included
Highlights & Details

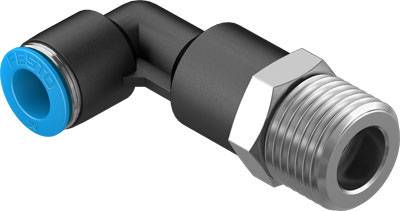

Screw fastener QSLL-1/2-10
Technical specifications
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Screw fastener
- Type
L-long plug-in gland QSLL-1/2-10 360° can be aligned, external thread with hexagon. Size = Standard, nominal width = 8.3 mm, seal type on the screw-in stud = coating, mounting position=any, container size = 1
- Operating temperature
-10 up to 80 °C
- Min. operating temperature
-10 °C
- Max. operating temperature
80 °C
- Manufacturer part #
190664
- Material (details)
PBT
- Connection
R1/2
- Max. operating pressure
6 bar
- Operating pressure (min.)
-0.95 bar
- Pressure range
-0.95 up to 6 bar
- Operating medium
Compressed air
Water
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1940378 FESTO Screw fastener QSLL-1/2-10 190664 -0.95 up to 6 bar
User & Safety Instructions
User & Safety Instructions 1940378 FESTO Screw fastener QSLL-1/2-10 190664 -0.95 up to 6 bar
