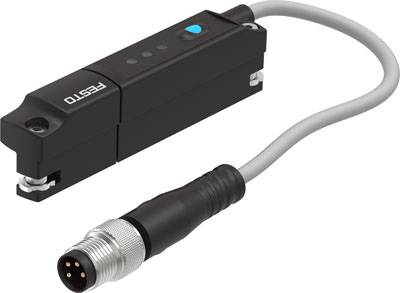

FESTO SDAP-MHS-M50-1L-A-E-0.3-M8 Position transmitter 1 pc(s) 30 V DC
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Position transmitter
Min. operating voltage
15 V DC
Max. operating voltage
30 V DC
Type
SDAP-MHS-M50-1L-A-E-0.3-M8
Number
Total (€ 293.28 / piece)
€ 293.28
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Electrical connection: cable with plug, M8 x 1, 4-pin, screw locking
- Color Cable sheath: Gray
- Readiness for operation indicator: green LED
- Product weight: 19 g
- Housing material: nickel-plated brass, PA-reinforced polyester, high-alloy steel stainless
- Packaging type
Piece
- Product type
Position transmitter
- Type
SDAP-MHS-M50-1L-A-E-0.3-M8
- Content
1 pc(s)
- Operating voltage
30 V DC
- Min. operating voltage
15 V DC
- Max. operating voltage
30 V DC
- Operating voltage
15 - 30 V DC
- Switching voltage (max.)
30 V DC
- Features
oil-resistant
- Resolution
0.05 mm
- Cable length
30.00 cm
IP65
IP68
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Thread type connection side
M8 x 1
- Manufacturer part #
8050120
- No. of pins
4
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2125053 FESTO SDAP-MHS-M50-1L-A-E-0.3-M8 Position transmitter 1 pc(s) 30 V DC
Description
Position transmitter SDAP-MHS-M50-1 L-A-E-0.3-M8 design = for T-groove, approval = (* RCM mark, * C UL US LISTED (oil)), CE mark (see declaration of conformity) = after EU EMC Directive, special properties = oil-resistant, material note = (* RoHS compliant, * halogen-free)
