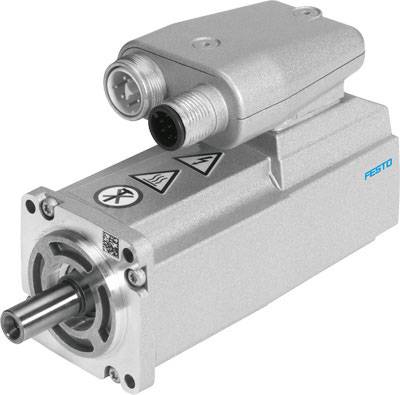

FESTO Servo motor 2082430 EMME-AS-40-S-LV-ASB 0.7 A 0.7 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,982.35 / piece)
€ 1,982.35
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Max. phase load
0.7 A
- Manufacturer part #
2082430
- Type
EMME-AS-40-S-LV-ASB
IP21
- Nominal voltage
360 V
- Nominal current
0.7 A
- Nominal power
110 W
- Nominal RPM
9000 U/min
- Nominal torque
0.12 Nm
- Max. ambient temperature
+40 °C
- Min. ambient temperature
-10 °C
- Weight
650 g
- UKCA
yes
- Product type
Servo motor
Documents & Downloads
Datasheet
Datasheet 2123325 FESTO Servo motor 2082430 EMME-AS-40-S-LV-ASB 0.7 A 0.7 A
User & Safety Instructions
User & Safety Instructions 2123325 FESTO Servo motor 2082430 EMME-AS-40-S-LV-ASB 0.7 A 0.7 A
Description
Servo motor Emme river-AS-40-S-LV-ASB without gear, with brakes. Ambient temperature = -10 - 40 °C, bearing temperature = -20 - 70 °C, relative humidity = 0 - 90%, according to standard = IEC 60034, Insulation protection class = F
