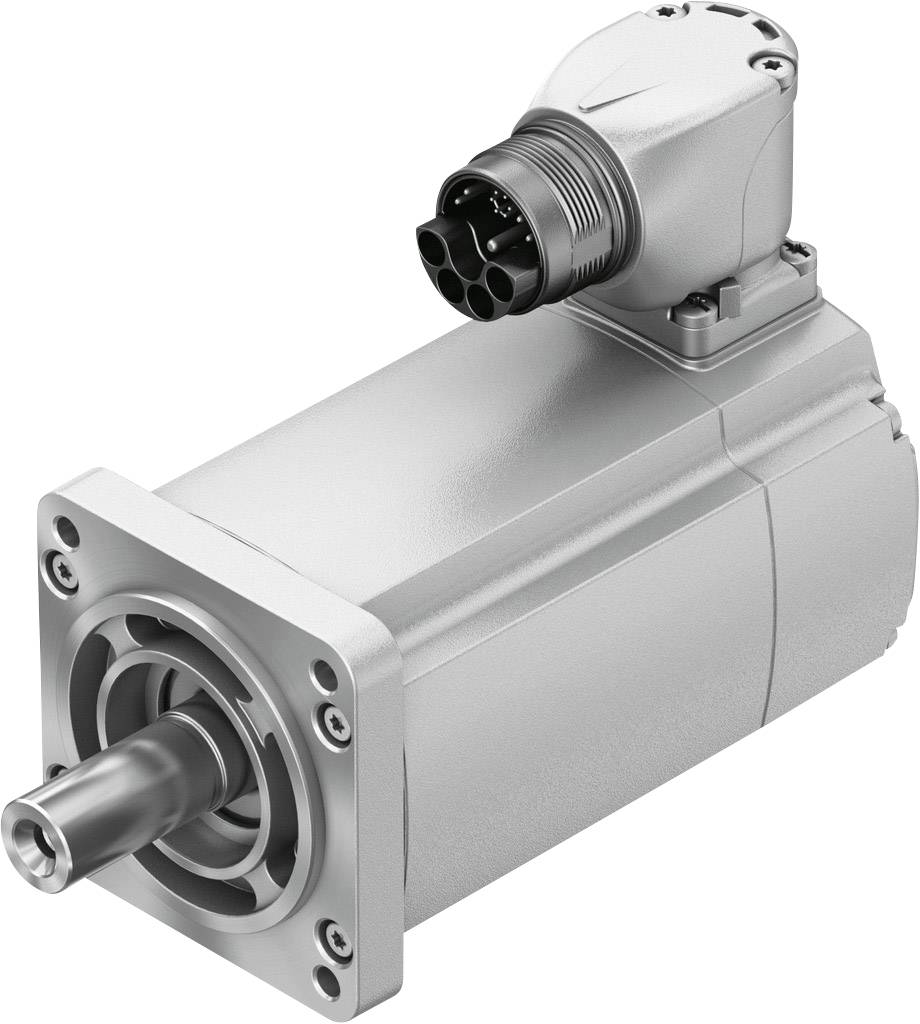

FESTO Servo motor 5242202 EMMT-AS-60-S-HS-RSB 0.66 Nm 1.4 A 5.4 A
EAN:
Part number:
Item no:
Number
Total (€ 1,024.37 / piece)
€ 1,024.37
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Storage temperature: -20 °C to +70 °C.
- Relative humidity: 0 - 90 %
- Note on ambient temperature: Up to 80°C with derating -1.5 %/°C.
- Max. Installation height 4,000 m.
- Note on max. installation height: From 1,000 m only with derating of -1 % per 100 m.
- Max. Winding temperature 155 °C.
- Rated class according to EN 60034-1: S1
- Temperature monitoring: Digital motor temperature transmission via EnDat 2.2
- MOTOR DESIGN ACCORDING TO EN 60034-7: IN B5, IN V1, IN V3
- All mounting positions permitted
- Note on protection class: IP40 motor shaft without RWDR, IP65 motor shaft with RWDR, IP67 for motor housing including connection technology
- Concentricity, coaxiality, flatness according to DIN SPEC 42955: N
- Balancing quality: G 2.5
- Detent torque: 1% of peak torque
- Bearing life at nominal conditions: 20,000 h
- Engine Out interface code: 60p
- Electrical connection 1, connection type: Hybrid connector
- Electrical connection 1, connection technology: M23x1
- Electrical connection 1, number of poles/wires: 15
- Pollution level: 2
- Corrosion resistance class KBK: 0 - no corrosion stress
- Winding switching mode: Star inside
- Number of pole pairs: 5
- Standstill torque: 0.66 Nm
- Peak torque 1.6 Nm
- Max. Speed: 12,500 rpm
- Max. Mechanical speed: 16,000 rpm
- Constant current 1.6 A
- Peak current: 5.4 A;
- Motor constant 0.41 Nm/A.
- Standstill torque constant: 0.49 Nm/A.
- Voltage constant phase-phase: 29.9 mVmin
- Winding resistance phase-phase: 11.7 Ohm
- Winding inductance phase-phase: 21 mH
- Winding Longitudinal inductance LD (phase): 13 mH
- Winding cross-inductance LQ (phase): 15.5 mH
- Electrical time constant: 2.1 ms
- Thermal time constant: 41 min.
- Thermal resistance 1.5 K/W
- Measuring flange 250 x 250 x 15 mm, steel
- Total output moment of inertia: 0.257 kgcm²
- Permissible axial shaft load 70 N.
- Permissible radial shaft load 350 N.
- Rotor position sensor: Encoder absolutely single turn
- Rotor position sensor Manufacturer's name: ECI 1118
- Rotor position sensor absolute detectable revolutions: 1
- Rotor position sensor interface: EnDat 22
- Rotor position sensor measuring principle: Inductive
- Rotor position sensor operating voltage DC 5 V
- Rotor position sensor operating voltage range: 3.6 V/DC - 14 V/DC
- Rotor position sensor position values per revolution: 262,144
- Rotor position sensor resolution: 18 bits
- Rotor position sensor System accuracy Angle measurement: -120 ... 120 arcsec
- Brake holding torque 2.5 Nm
- Operating voltage DC brake 24 V
- Current consumption of brake 0.46 A
- Brake release current 0.33 A.
- Brake holding current 0.33 A.
- Power consumption brake: 11 W.
- Coil resistance brake: 52.4 ohms
- Coil inductance brake 700 mH
- Brake cut-off time 35 ms
- Brake closing time: 10 ms
- DC brake response delay: 2 ms
- Max. Idle speed brake: 10,000 rpm
- Max. Friction work brake: 5,600 J
- Mass moment of inertia Brake: 0.074 kgcm²
- Holding torque
0.66 Nm
- Max. phase load
5.4 A
- Manufacturer part #
5242202
- Type
EMMT-AS-60-S-HS-RSB
IP40
- Interfaces
Serial interface
- Nominal current
1.4 A
- Nominal voltage
565 V
- Nominal power
190 W
- Rotational speed
3000 U/min
- Nominal torque
0.6 Nm
- Pins
15
- Max. ambient temperature
+40 °C
- Min. ambient temperature
-15 °C
- Weight
1500 g
- UKCA
yes
- Product type
Servo motor
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2207829 FESTO Servo motor 5242202 EMMT-AS-60-S-HS-RSB 0.66 Nm 1.4 A 5.4 A
Description
• dynamic, brushless
, permanent-magnet synchronous servo motors
• extremely low latching torque –
supports high synchronous operation
even at low speeds
• Digital absolute measuring system
can be selected:
– Single-turn
– Multiturn, batteryless
• Simple connection technology
(OCP: One cable plug) – Hybrid cable: Motor and connection cable for supply and
encoder in one
• Motor connector
can be aligned
• Torque optimized
• Speed optimized
• Protection class:
– IP40 (motor shaft)
– IP67 (motor housing with connection technology)
– IP65 (motor shaft with radial shaft seal made of PTFE)
• Motor temperature transmission digitally via EnDat 2.2; Motor protection via CMMT-AS • Optional:
– Holding brake
– Shaft with key
– Motor shaft with radial shaft seal
This text is machine translated.
, permanent-magnet synchronous servo motors
• extremely low latching torque –
supports high synchronous operation
even at low speeds
• Digital absolute measuring system
can be selected:
– Single-turn
– Multiturn, batteryless
• Simple connection technology
(OCP: One cable plug) – Hybrid cable: Motor and connection cable for supply and
encoder in one
• Motor connector
can be aligned
• Torque optimized
• Speed optimized
• Protection class:
– IP40 (motor shaft)
– IP67 (motor housing with connection technology)
– IP65 (motor shaft with radial shaft seal made of PTFE)
• Motor temperature transmission digitally via EnDat 2.2; Motor protection via CMMT-AS • Optional:
– Holding brake
– Shaft with key
– Motor shaft with radial shaft seal
This text is machine translated.
