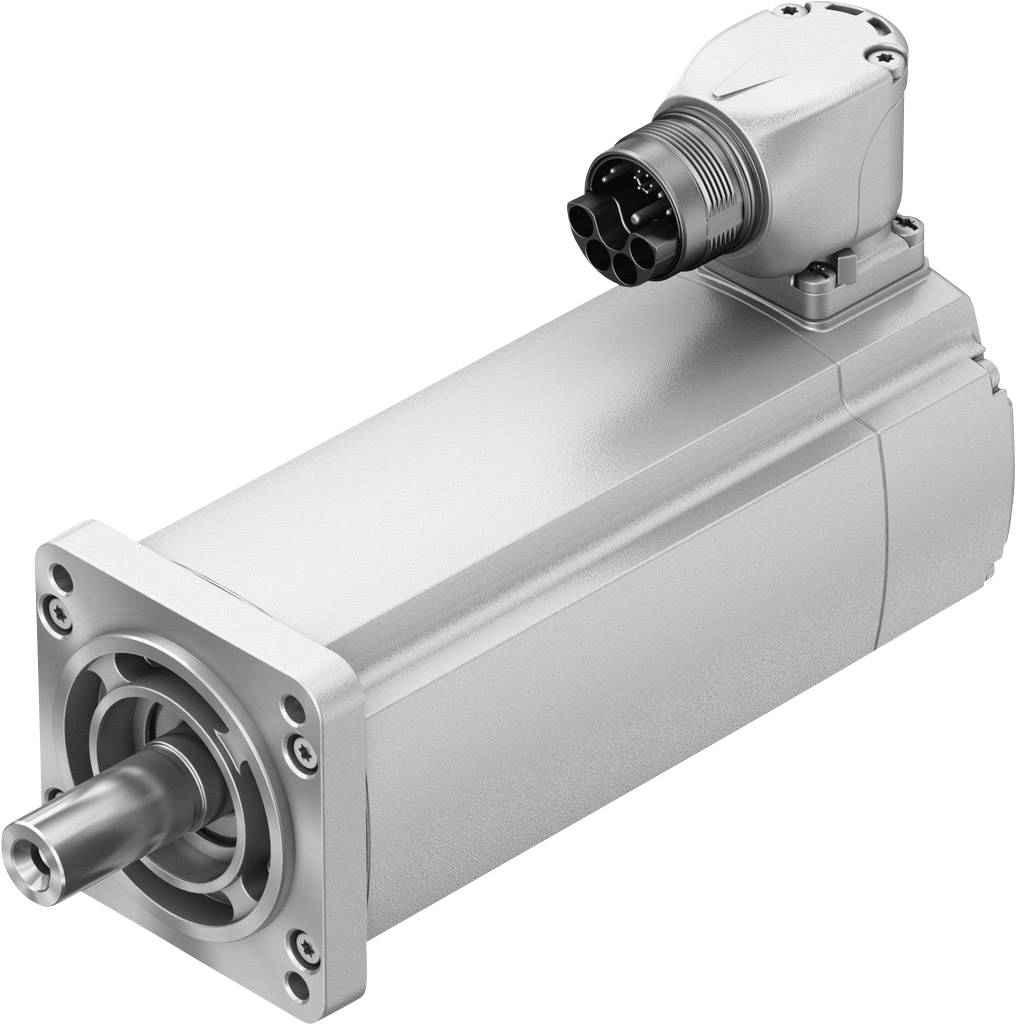

FESTO Servo motor 5242217 EMMT-AS-60-L-HS-RM 3.2 A
EAN:
Part number:
Item no:
Number
Total (€ 1,037.82 / piece)
€ 1,037.82
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Storage temperature: -20 °C to +70 °C.
- Relative humidity: 0 - 90 %
- Note on ambient temperature: Up to 80°C with derating -1.5 %/°C.
- Max. Installation height 4,000 m.
- Note on max. installation height: From 1,000 m only with derating of -1 % per 100 m.
- Max. Winding temperature 155 °C.
- Rated class according to EN 60034-1: S1
- Temperature monitoring: Digital motor temperature transmission via EnDat 2.2
- MOTOR DESIGN ACCORDING TO EN 60034-7: IN B5, IN V1, IN V3
- All mounting positions permitted
- Note on protection class: IP40 motor shaft without RWDR, IP65 motor shaft with RWDR, IP67 for motor housing including connection technology
- Concentricity, coaxiality, flatness according to DIN SPEC 42955: N
- Balancing quality: G 2.5
- Detent torque: 1% of peak torque
- Bearing life at nominal conditions: 20,000 h
- Engine Out interface code: 60p
- Electrical connection 1, connection type: Hybrid connector
- Electrical connection 1, connection technology: M23x1
- Electrical connection 1, number of poles/wires: 15
- Pollution level: 2
- Corrosion resistance class KBK: 0 - no corrosion stress
- Winding switching mode: Star inside
- Number of pole pairs: 5
- Standstill torque: 1.66 Nm
- Peak torque 5.6 Nm
- Max. Speed: 11,900 rpm
- Max. Mechanical speed: 16,000 rpm
- Constant current 3.8 A
- Peak current: 18.3 A;
- Motor constant: 0.44 Nm/A.
- Standstill torque constant: 0.52 Nm/A.
- Voltage constant phase-phase: 31.2 mVmin
- Winding resistance phase-phase: 2.68 ohms
- Winding inductance phase-phase: 7 mH
- Winding Longitudinal inductance LD (phase): 4.2 mH
- Winding cross-inductance LQ (phase): 5 mH
- Electrical time constant: 3 ms
- Thermal time constant: 43 min.
- Thermal resistance 1 K/W
- Measuring flange 250 x 250 x 15 mm, steel
- Total output moment of inertia: 0.403 kgcm²
- Permissible axial shaft load 70 N.
- Permissible radial shaft load 350 N.
- Rotor position encoder: Encoder absolutely multi turn
- Rotor position sensor Manufacturer's name: EQI 1131
- Rotor position sensor absolute detectable revolutions: 4,096
- Rotor position sensor interface: EnDat 22
- Rotor position sensor measuring principle: Inductive
- Rotor position sensor operating voltage DC 5 V
- Rotor position sensor operating voltage range: 3.6 V/DC - 14 V/DC
- Rotor position sensor position values per revolution: 524.288
- Rotor position sensor resolution: 19 bits
- Rotor position sensor System accuracy Angle measurement: -120 ... 120 arcsec
- Manufacturer part #
5242217
- Type
EMMT-AS-60-L-HS-RM
IP40
- Nominal current
3.2 A
- Nominal voltage
565 V
- Nominal power
440 W
- Rotational speed
3000 U/min
- Nominal torque
1.4 Nm
- Pins
15
- Max. ambient temperature
+40 °C
- Min. ambient temperature
-15 °C
- Weight
1910 g
- UKCA
yes
- Product type
Servo motor
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2207844 FESTO Servo motor 5242217 EMMT-AS-60-L-HS-RM 3.2 A
Description
• dynamic, brushless
, permanent-magnet synchronous servo motors
• extremely low latching torque –
supports high synchronous operation
even at low speeds
• Digital absolute measuring system
can be selected:
– Single-turn
– Multiturn, batteryless
• Simple connection technology
(OCP: One cable plug) – Hybrid cable: Motor and connection cable for supply and
encoder in one
• Motor connector
can be aligned
• Torque optimized
• Speed optimized
• Protection class:
– IP40 (motor shaft)
– IP67 (motor housing with connection technology)
– IP65 (motor shaft with radial shaft seal made of PTFE)
• Motor temperature transmission digitally via EnDat 2.2; Motor protection via CMMT-AS • Optional:
– Holding brake
– Shaft with key
– Motor shaft with radial shaft seal
