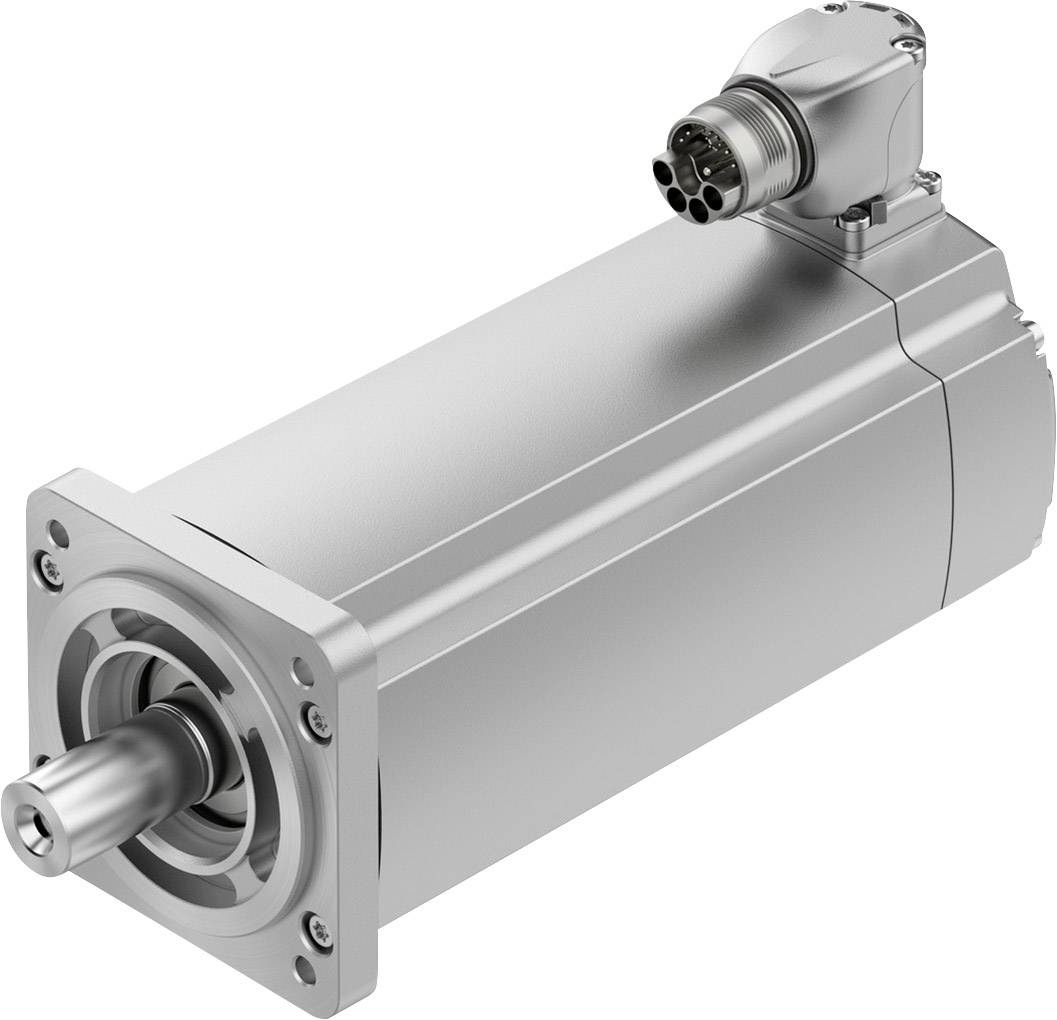

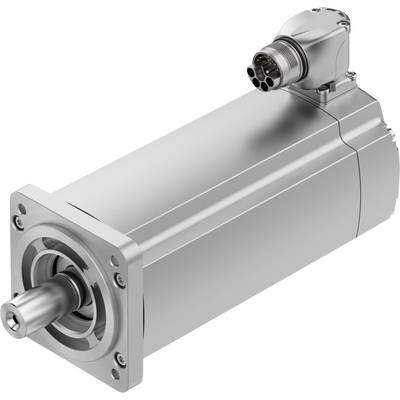

FESTO Servo motor 5255435 EMMT-AS-80-M-LS-RSB 4.1 A 17.1 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,234.45 / piece)
€ 1,234.45
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Ambient temperature: -15 ... 40 °C).
- Storage temperature: -20 ... 70 °C
- Max. Installation height 4,000 m.
- Note on max. installation height: From 1,000 m only with derating of -1.0% per 100 m.
- Relative humidity: 0 - 90 %
- Temperature class according to EN 60034-1: F
- Max. Winding temperature 155 °C.
- Rated class according to EN 60034-1: S1
- Temperature monitoring: Digital motor temperature transmission via EnDat 2.2
- Motor design according to EN 60034-7: IN B5
- IN V1
- IN V3
- All mounting positions permitted
- Protection class: IP40
- Note on protection class: IP40 motor shaft without RWDR
- IP65 motor shaft with RWDR
- IP67 for motor housing including connection technology
- Locking torque<: 1.0% of peak torque
- Bearing life at nominal conditions: 20,000 h
- Engine Out interface code: 80P
- Electrical connection 1, connection type: Hybrid connector
- Electrical connection 1, connection technology: M23x1
- Electrical connection 1, number of poles/wires: 15
- Pollution level: 2
- Corrosion resistance class KBK: 0 - no corrosion stress
- Winding switching mode: Star inside
- Number of pole pairs: 5
- Standstill torque: 2.6 Nm
- Nominal torque: 2.2 Nm
- Peak torque 6.4 Nm
- Max. Speed 6150 rpm
- Max. Mechanical speed 14000 rpm
- Rated motor power 690 W.
- Continuous current: 4.9 A.
- Motor constant: 0.54 Nm/A.
- Standstill torque constant: 0.62 Nm/A.
- Voltage constant phase-phase: 37.3 mVmin
- Winding resistance phase-phase: 2.04 ohms
- Winding inductance phase-phase: 8.9 mH
- Winding longitudinal inductance LD (phase): 5.4 mH
- Winding cross-inductance LQ (phase): 6.6 mH
- Electrical time constant: 6.5 ms
- Thermal time constant 45 min.
- Thermal resistance 0.78 K/W
- Measuring flange 250 x 250 x 15 mm
- Total output moment of inertia: 2.07 kgcm2
- Product weight: 360g
- Permissible axial shaft load 120 N.
- Permissible radial shaft load 620 N.
- Rotor position sensor absolute detectable revolutions: 1
- Rotor position sensor interface: EnDat 22
- Rotor position sensor measuring principle: Inductive
- Rotor position sensor operating voltage DC 5 V
- Rotor position sensor operating voltage range DC: 3.6 ... 14 V
- Rotor position sensor position values per revolution: 262,144
- Rotor position sensor resolution: 18 bits
- Rotor position sensor System accuracy Angle measurement: -120 ... 120 arcsec
- Brake holding torque: 4.5 Nm
- Operating voltage DC brake 24 V
- Power consumption brake 0.5 A
- Brake release current 0.37 A.
- Brake holding current 0.37 A.
- Power consumption brake: 12 W
- Coil resistance brake: 48 ohms
- Coil inductance brake 1000 mH
- Brake release time< = 55 ms
- Brake closing time<: = 15 ms
- DC brake response delay<: = 3 ms
- Max idle speed brake 10000 rpm
- Max friction work brake: 8200 J
- Moment of inertia brake: 0.249 kgcm2
- Holding brake switching cycles: 10 Mio empty operations (without friction work)
- MTTF, component part: 190 years, rotor position sensor
- MTTFd, component part: 380 years, rotor position sensor
- Max. phase load
17.1 A
- Manufacturer part #
5255435
- Type
EMMT-AS-80-M-LS-RSB
- Nominal current
4.1 A
- Nominal voltage
325 V
- Rotational speed
3000 U/min
- UKCA
yes
- Product type
Servo motor
Documents & Downloads
Datasheet
Datasheet 2207946 FESTO Servo motor 5255435 EMMT-AS-80-M-LS-RSB 4.1 A 17.1 A
User & Safety Instructions
User & Safety Instructions 2207946 FESTO Servo motor 5255435 EMMT-AS-80-M-LS-RSB 4.1 A 17.1 A
Description
• dynamic, brushless
, permanent-magnet synchronous servo motors
• extremely low latching torque –
supports high synchronous operation
even at low speeds
• Digital absolute measuring system
can be selected:
– Single-turn
– Multiturn, batteryless
• Simple connection technology
(OCP: One cable plug) – Hybrid cable: Motor and connection cable for supply and
encoder in one
• Motor connector
can be aligned
• Torque optimized
• Speed optimized
• Protection class:
– IP40 (motor shaft)
– IP67 (motor housing with connection technology)
– IP65 (motor shaft with radial shaft seal made of PTFE)
• Motor temperature transmission digitally via EnDat 2.2; Motor protection via CMMT-AS • Optional:
– Holding brake
– Shaft with key
– Motor shaft with radial shaft seal
