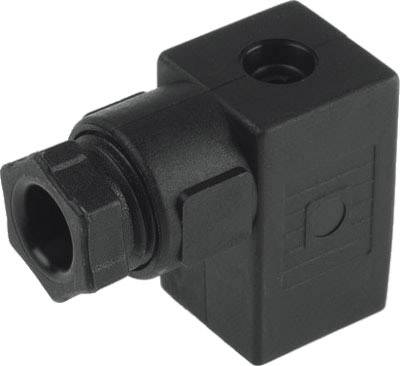

FESTO Socket 14098 MSSD-E Number of pins: 3 250 V AC (max) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 4.19 / piece)
€ 4.19
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Socket MSSD-E
Technical specifications
- Cable diameter 6 mm-8mm; connection cross-section: 0.75 mm²
- Compatible with (details)
Solenoids and valves
- Product type
Socket
- Max. operating voltage
250 V AC
- Manufacturer part #
14098
- Type
Electrical connection: SOCKET ANGLED T
- Operating voltage
250 V AC (max)
- Permanent current (max.)
6 A
- Weight
8 g
- Material (details)
Housing: PA-reinforced
- Number of pins
3
- Number of contacts (details)
3
IP65
- Max. ambient temperature
+90 °C
- Min. ambient temperature
-25 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1896363 FESTO Socket 14098 MSSD-E Number of pins: 3 250 V AC (max) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1896363 FESTO Socket 14098 MSSD-E Number of pins: 3 250 V AC (max) 1 pc(s)
Information
Information 1896363 FESTO Socket 14098 MSSD-E Number of pins: 3 250 V AC (max) 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
