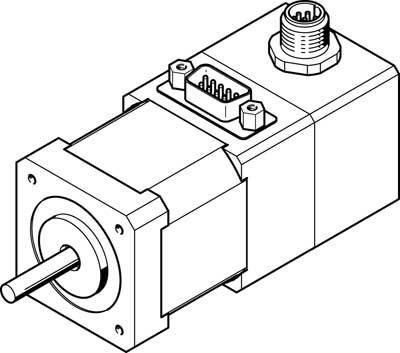

FESTO Stepper motor 1370471 EMMS-ST-42-S-SE-G2 0.5 Nm 1.8 A 1.8 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 491.60 / piece)
€ 491.60
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Ambient temperature: -10 °C to +50 °C
- Protection class: IP54
- Electrical connection technology: Plug
- Class 1 - Low corrosion stress corrosion resistance: KBK
- Product weight: 450 g
- Angle
1.8°
- Holding torque
0.5 Nm
- Max. phase load
1.8 A
- Manufacturer part #
1370471
- Type
EMMS-ST-42-S-SE-G2
- Nominal current
1.8 A
- Nominal voltage
58 V
- Rotational speed
1740 U/min
- Nominal torque
0.5 Nm
- Max. ambient temperature
50 °C
- Min. ambient temperature
-10 °C
- Weight
450 g
- UKCA
yes
- Product type
Stepper motor
Documents & Downloads
Datasheet
Datasheet 2122323 FESTO Stepper motor 1370471 EMMS-ST-42-S-SE-G2 0.5 Nm 1.8 A 1.8 A
User & Safety Instructions
User & Safety Instructions 2122323 FESTO Stepper motor 1370471 EMMS-ST-42-S-SE-G2 0.5 Nm 1.8 A 1.8 A
Description
Stepper motor EMMS-ST-42-S-SE-G2 without gear, without brakes. Ambient temperature = -10 - 50 °C, bearing temperature = -20 - 70 °C, relative humidity = 0 - 85%, according to standard = IEC 60034, Insulation protection class=B
