FESTO Stopper cylinder 164894 STAF-80-40-P-A-R Stroke length: 40 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 536.97 / piece)
€ 536.97
plus VAT.
14-day return policy included
Highlights & Details

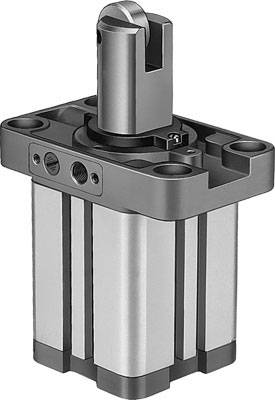

Stopper cylinder STAF-80-40-P-A-R
Technical specifications
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Stopper cylinder
- Stroke length
40 mm
- Max. operating pressure
10 bar
- Material (details)
Aluminium
- Manufacturer part #
164894
- Type
Stopper cylinder STAF -80-40-P-A-R with roller and built-in flange plate. Hub = 40 mm, piston diameter = 80 mm, attenuation=P: elastic damping rings/plates on both sides, mounting position=any, mode of operation = (*) * single-acting, pulling
- Weight
5350 g
- Sealant
NBR
- Pneumatics connector
G1/8"
- Piston rod material
Steel (stainless)
- Piston rod diameter
80 mm
- Max. ambient temperature
+60 °C
- Min. ambient temperature
0 °C
- UKCA
not relevant
