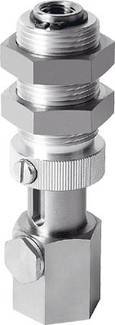

FESTO Suction cup holder ESH-HCL-5-G 189231 G 1/8 Enclosure material Polyamide
EAN:
Part number:
Item no:
Number
Total (€ 184.87 / piece)
€ 184.87
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Fastening method: With lock nut
- Operating medium: Atmospheric air in accordance with ISO 8573-1:2010 [7:-:-]
- Installation position vertical
- Height compensation suction cup holder: 30 mm
- Design: Vacuum connection at the top
- With height compensation
- Corrosion resistance class KBK: 1 - low corrosion stress
- Product weight: 169 g
- Suction unit mounting: M10
- Ambient temperature: -10 ... 60 °C
- Vacuum connection: G1 / 8
- Volume: 6.06 cm3
- Material holder: POM
- Quenched steel
- High alloyed steel
- Material note: RoHS compliant
- Allocation of suction cup holder: Size 5
- Operating medium
Atmospheric air
- Type
189231
- Product type
Suction cup holder
- Enclosure material
Polyamide
- Connection
G 1/8
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
189231
- Weight
169 g
- Medium
Natural air
- Height
30 mm
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2203811 FESTO Suction cup holder ESH-HCL-5-G 189231 G 1/8 Enclosure material Polyamide
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
