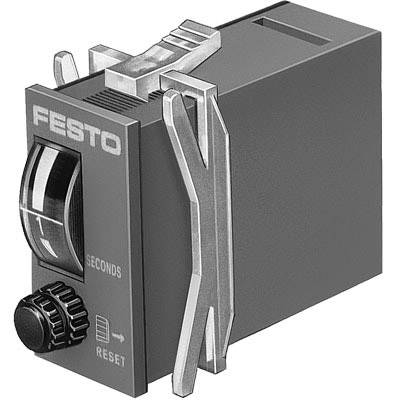

FESTO Timer 150238 PZVT-30-SEC 2 up to 6 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 365.55 / piece)
€ 365.55
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Product weight: 45g
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Timer
- Min. display range
2 bar
- Display range (max.)
6 bar
- Manufacturer part #
150238
- Material (details)
ABS
- Connection
M5
- Max. operating pressure
6 bar
- Operating pressure (min.)
2 bar
- Pressure range
2 up to 6 bar
- Operating medium
Compressed air
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2115393 FESTO Timer 150238 PZVT-30-SEC 2 up to 6 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2115393 FESTO Timer 150238 PZVT-30-SEC 2 up to 6 bar 1 pc(s)
Information
Information 2115393 FESTO Timer 150238 PZVT-30-SEC 2 up to 6 bar 1 pc(s)
Description
Timer PZVT-30-SEC design = mechanical sequence counter with pneumatic drive, switch-off pressure = ≤ 0.1 bar, Operating pressure = 2 - 6 bar, switch-on pressure ≥ = 1.6 bar, normal rated flow = 50 l/min
