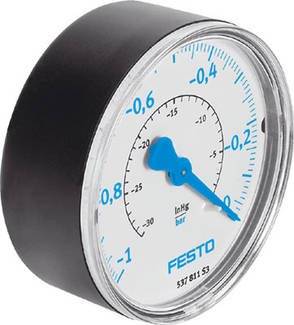

FESTO Vacuum gauge VAM-63-V1/0-R1/4-EN 537811 R 1/4
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 29.40
3
4% = € 1.27
€ 28.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 29.40 / piece)
€ 29.40
plus VAT.
Only 9 Piece(s) available
Highlights & Details
Technical specifications
- Connection position: Rear side centric
- Display range: -30 ... 0 in Hg
- Display area [bar]: -1 ... 0 bar
- Based on standard: DIN EN 837-1
- Mounting type: Front panel installation
- Operating pressure: -1 ... 0 bar
- Operating medium: Compressed air according to ISO 8573-1:2010 [7:4:4]
- Type of seal on screw-in pin: Coating
- All mounting positions permitted
- Continuous load factor 0.75
- Factor change load: 0.66
- Note on operating and control medium: Oiled operation possible (required in further operation)
- Design: Tube spring pressure gauge
- Corrosion resistance class KBK: 0 - no corrosion stress
- Medium temperature: -20 ... 60 °C
- Measuring accuracy class: 2.5
- Nominal pressure gauge size 63
- Pneumatic connection: R1/4
- Product weight: 83 g
- Scale: Double scale
- bar (outside)
- inch hg (indoor) / psi (indoor)
- Ambient temperature: -10 ... 60 °C
- Screw-in pin material: Brass
- Material housing: ABS
- Material viewing window: PS
- Material note: RoHS compliant
- Operating medium
Compressed Air
- Type
537811
- Product type
Vacuum gauge
- Connection
R 1/4
- Max. operating pressure
0 bar
- Manufacturer part #
537811
- Operating pressure (min.)
-1 bar
- Weight
83 g
- Media temperature (range)
-20 up to +60 °C
- Max. media temperature
+60 °C
- Media temperature (min.)
-20 °C
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2204319 FESTO Vacuum gauge VAM-63-V1/0-R1/4-EN 537811 R 1/4
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
