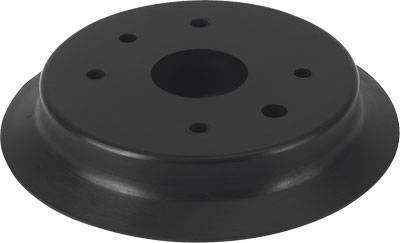

FESTO Vacuum suction cup ESV-150-SN 191011 Sealant NBR
EAN:
Part number:
Item no:
Number
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Connection position: Top
- Operating medium: Atmospheric air in accordance with ISO 8573-1:2010 [7:-:-]
- All mounting positions permitted
- Colour: Black
- Holding force at rated operating pressure 900 N.
- Food suitability: See extended material information
- Min Workpiece radius R: 480 mm
- Product weight: 350 g
- Suction unit diameter 150 mm
- Suction cup shape: Round flat
- Suction unit volume: 173,826 cm3
- Shore hardness 50 +/- 5
- Ambient temperature: -10 ... 70 °C
- Material suction unit: NBR
- Material information: Free of copper and PTFE
- Complies with RoHS
- Operating medium
Atmospheric air
- Type
191011
- Product type
Vacuum suction cup
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
191011
- Sealant
NBR
- Weight
361 g
- Medium
Natural air
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-10 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2204016 FESTO Vacuum suction cup ESV-150-SN 191011 Sealant NBR
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
