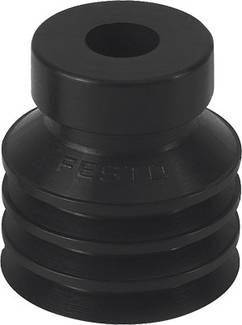

FESTO Vacuum suction cup ESV-20-CN 191071 Sealant NBR
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.92
€ 20.08
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.00 / piece)
€ 21.00
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Connection position: Top
- Operating medium: Atmospheric air in accordance with ISO 8573-1:2010 [7:-:-]
- All mounting positions permitted
- Colour: Black
- Holding force at nominal operating pressure 8.2 N.
- Height compensation suction unit: 7 mm
- Food suitability: See extended material information
- Min Workpiece radius R: 50 mm
- Product weight: 2.1 g
- Suction unit diameter 20 mm
- Suction cup: Round, bellows 3.5-fold
- Suction unit volume: 2.75 cm3
- Shore hardness 50 +/- 5
- Ambient temperature: -10 ... 70 °C
- Material suction unit: NBR
- Material information: Free of copper and PTFE
- Complies with RoHS
- Operating medium
Atmospheric air
- Type
191071
- Product type
Vacuum suction cup
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
191071
- Sealant
NBR
- Weight
2.1 g
- Medium
Natural air
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2204067 FESTO Vacuum suction cup ESV-20-CN 191071 Sealant NBR
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
