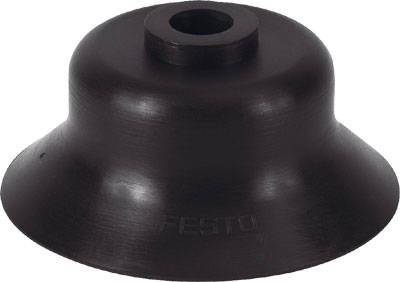

FESTO Vacuum suction cup ESV-40-EN 191031 Sealant NBR
EAN:
Part number:
Item no:
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Connection position: Top
- Operating medium: Atmospheric air in accordance with ISO 8573-1:2010 [7:-:-]
- All mounting positions permitted
- Colour: Black
- Holding force at rated operating pressure 67.6 N.
- Food suitability: See extended material information
- Min Workpiece radius R: 80 mm
- Product weight: 8 g
- Suction unit diameter 40 mm
- Suction cup shape: Round, extra-deep
- Suction unit volume: 3,733 cm3
- Shore hardness 60 +/- 5
- Ambient temperature: -10 ... 70 °C
- Material suction unit: NBR
- Material information: Free of copper and PTFE
- Complies with RoHS
- Operating medium
Atmospheric air
- Type
191031
- Product type
Vacuum suction cup
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
191031
- Sealant
NBR
- Weight
8 g
- Media temperature (range)
-10 up to 70 °C
- Max. media temperature
70 °C
- Media temperature (min.)
-10 °C
- Medium
Natural air
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2204032 FESTO Vacuum suction cup ESV-40-EN 191031 Sealant NBR
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
