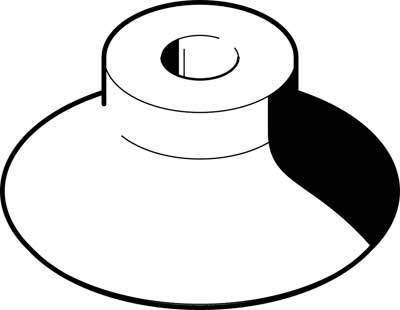

FESTO Vacuum suction cup ESV-40-GT 526001
EAN:
Part number:
Item no:
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Tear-off force at 70% vacuum: 54 N.
- Mounting type: Via vacuum connection
- Operating pressure: -0.95 ... 0 bar
- Operating medium: Atmospheric air in accordance with ISO 8573-1:2010 [7:-:-]
- All mounting positions permitted
- Color: Red brown
- Holding force at rated operating pressure 64 N.
- Height compensation suction cup holder 5.5 mm
- Constructive structure: Round, bell-shaped
- Min Workpiece radius R: 35 mm
- Nominal operating pressure: -0.7 bar
- Product weight: 5,7 g
- Transverse force at nominal operating pressure 20 N.
- Suction unit diameter 40 mm
- Suction cup shape: Round deep
- Suction unit volume: 5.4 cm3
- Shore hardness 72 +/- 5
- Ambient temperature: -10 ... 80 °C
- Vacuum material: Vulkollan®
- Material information: Free of copper and PTFE
- Complies with RoHS
- Operating medium
Atmospheric air
- Type
526001
- Product type
Vacuum suction cup
- Max. operating pressure
-0.95 bar
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
526001
- Operating pressure (min.)
-0.95 bar
- Weight
5.7 g
- Medium
Natural air
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
