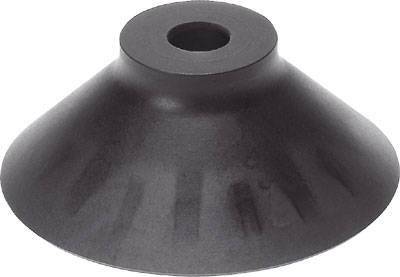

FESTO Vacuum suction cup ESV-50-GT 526002 Sealant Polyurethane
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 19.32
3
5% = € 0.96
€ 18.36
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Tear-off force at 70% vacuum: 97 N.
- Mounting type: Via vacuum connection
- Operating pressure: -0.95 ... 0 bar
- Operating medium: Atmospheric air in accordance with ISO 8573-1:2010 [7:-:-]
- All mounting positions permitted
- Color: Red brown
- Holding force at rated operating pressure 97 N.
- Height compensation suction cup holder: 8 mm
- Constructive structure: Round, bell-shaped
- Min Workpiece radius R: 40 mm
- Nominal operating pressure: -0.7 bar
- Product weight: 9,2 g
- Transverse force at nominal operating pressure 30 N.
- Suction unit diameter 50 mm
- Suction cup shape: Round deep
- Suction unit volume: 11.2 cm3
- Shore hardness 72 +/- 5
- Ambient temperature: -10 ... 80 °C
- Vacuum material: Vulkollan®
- Material information: Free of copper and PTFE
- Complies with RoHS
- Operating medium
Atmospheric air
- Type
526002
- Product type
Vacuum suction cup
- Max. operating pressure
-0.95 bar
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
526002
- Operating pressure (min.)
-0.95 bar
- Sealant
Polyurethane
- Weight
9.2 g
- Media temperature (range)
-10 up to 80 °C
- Max. media temperature
80 °C
- Media temperature (min.)
-10 °C
- Medium
Natural air
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2204193 FESTO Vacuum suction cup ESV-50-GT 526002 Sealant Polyurethane
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
