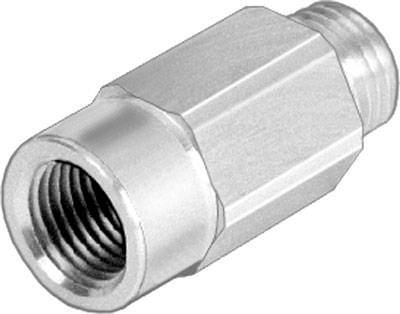

FESTO Vacuum suction valve ISV-M5 151217 M5
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.92
€ 20.08
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.00 / piece)
€ 21.00
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Discharge impulse capability: 8 bar
- Size M5:
- Mounting type: Screw-in
- Operating pressure: 0 ... 0.95 bar
- Operating medium: Compressed air according to ISO 8573-1:2010 [7:-:-]
- All mounting positions permitted
- Required suction flow at -0.5 bar: 1 l/min.
- Corrosion resistance class KBK: 2 - moderate corrosion stress
- Pneumatic connection 1: M5
- Pneumatic connection 2: M5
- Product weight: 4 g
- Ambient temperature: -10 ... 60 °C
- Material filter: Sintered bronze
- Operating medium
Compressed Air
- Type
151217
- Product type
Vacuum suction valve
- Connection
M5
- Max. operating pressure
0.95 bar
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
151217
- Operating pressure (min.)
0 bar
- Weight
4 g
- Medium
Compressed air
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2203646 FESTO Vacuum suction valve ISV-M5 151217 M5
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
