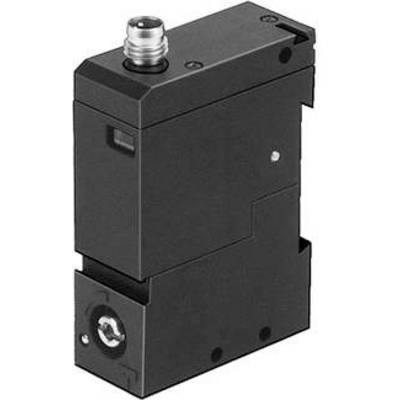

FESTO Vacuum switch 152619 VPEV-W-KL-LED-GH 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 78.98 / piece)
€ 78.98
plus VAT.
Only 2 Piece(s) available
Highlights & Details
VPEV-W-KL-LED-GH
Technical specifications
- Pressure measuring range:-0.8bar 0.2 bar
- Operating pressure: 1 bar-0 bar
- Measurement size: Relative pressure
- Mounting type: With Through Hole, with top-hat rail
- Pneumatic connection: M5
- Material housing: PA, PET, POM
- Switching status indicator: LED yellow
- Protection class: IP20
- Electrical Connection: screw terminal, 4-pin
- Type
VPEV-W-KL-LED-GH
- Operating medium
Compressed Air
- Product type
Vacuum switch
- Type
Corrosion resistance class KBK: 2-moderate corrosion stress
- Manufacturer part #
152619
- Operating voltage
30 V
- Weight
56 g
IP20
- Connection
Screw terminal
- No. of pins
4
- Thread type connection side
M5
- Nominal voltage
30 V
- Max. temperature
60 °C
- Min. temperature
0 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1945600 FESTO Vacuum switch 152619 VPEV-W-KL-LED-GH 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1945600 FESTO Vacuum switch 152619 VPEV-W-KL-LED-GH 1 pc(s)
Description
Vacuum switch VPEV-W-KL-LED-GH for mounting on G or H-rail. Approval = RCM mark, CE mark (see declaration of conformity) = after EU EMC Directive, material note = (* LABS-containing substances, * RoHS compliant), measurement size = relative pressure, measuring method = pneumatically-electric pressure transducer
