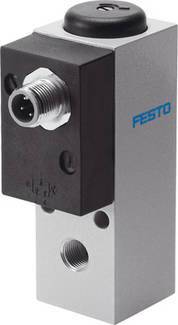

FESTO Vacuum switch 192489 VPEV-1/8-M12 G1/8 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 151.25 / piece)
€ 151.25
plus VAT.
14-day return policy included
Highlights & Details
VPEV-1/8-M12
Technical specifications
- Pressure 1 bar -1.6 bar
- Operating pressure: 1 bar -1.6 bar
- Measurement size: Relative pressure
- Mounting type: With Through Hole
- Pneumatic connection: G1/8
- Material Housing: aluminum wrought alloy
- IP65 rating
- Electrical connection: Plug, round design, M12, 4-pin
- Type
VPEV-1/8-M12
- Operating medium
Compressed Air
- Product type
Vacuum switch
- Type
Corrosion resistance class KBK: 2-moderate corrosion stress
- Manufacturer part #
192489
- Operating voltage
48 V
- Fluid connection
G1/8
- Weight
220 g
IP65
- Connection side A
M12 plug, straight
- No. of pins
4
- Thread type connection side
M12
- Max. temperature
80 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1945601 FESTO Vacuum switch 192489 VPEV-1/8-M12 G1/8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1945601 FESTO Vacuum switch 192489 VPEV-1/8-M12 G1/8 1 pc(s)
Description
Vacuum switch VPEV-1/8-M12 meets standard = EN60947-5-1, approval = (* CCC, *C UL US recognized (oil)), CE mark (see declaration of conformity) = after EU Low Voltage Directive, material note = RoHS compliant, measurement size = relative pressure
