FESTO Valve accessories PWEA-AC-6A 538679 G 1/2 Enclosure material Aluminium (die-cast)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 491.60 / piece)
€ 491.60
plus VAT.
14-day return policy included
Highlights & Details

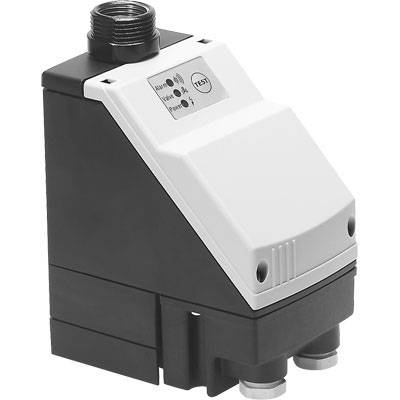

Valve accessories PWEA-AC-6A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 [compressed air -:-:-]
- Type
538679
- Product type
Valve accessories
- Enclosure material
Aluminium (die-cast)
- Connection
G 1/2
- Max. operating pressure
16 bar
- Operating temperature
1 up to +60 °C
- Min. operating temperature
1 °C
- Max. operating temperature
+60 °C
- Operation
Cable installation
- Manufacturer part #
538679
- Operating pressure (min.)
0.8 bar
- Function
3/2 normally closed mono-stable
- Weight
700 g
- Material
Plastic
- Medium
Compressed air
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1940125 FESTO Valve accessories PWEA-AC-6A 538679 G 1/2 Enclosure material Aluminium (die-cast)
User & Safety Instructions
User & Safety Instructions 1940125 FESTO Valve accessories PWEA-AC-6A 538679 G 1/2 Enclosure material Aluminium (die-cast)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
