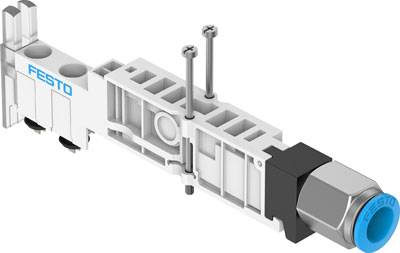

FESTO Vertical feeder VMPA14-VSP-QS3/8 8110623 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 45.37 / piece)
€ 45.37
plus VAT.
14-day return policy included
Technical specifications
- Product type
Vertical feeder
- Medium
ISO 8573-1:2010 [1:4:1] compliance
- Max. operating pressure
10 bar
- Operating temperature
-5 °C (min)
- Manufacturer part #
8110623
- Station dimensions
14 mm
- Max. operating pressure
-10 bar
- Min. operating pressure
-0.9 bar
- Min. operating temperature
-5 °C
- Weight
55 g
- Material
Polyamide (fibreglass-reinforced)
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-5 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2800010 FESTO Vertical feeder VMPA14-VSP-QS3/8 8110623 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2800010 FESTO Vertical feeder VMPA14-VSP-QS3/8 8110623 1 pc(s)
Description
Vertical supply plate VMPA14-VSP-QS3/8 Raster=14 mm, Operating pressure MPa=-0.09 - 1 MPa, Operating pressure=-0.9 - 10 bar, Control pressure MPa=0.3 - 0.8 MPa, Control pressure=3 - 8 bar
This text is machine translated.
This text is machine translated.
Hints
The kv-value specifies the water flow through a valve in litre per minute at a pressure of hardly 1 bar and a water temperature in the range of 5 - 30 °C.
