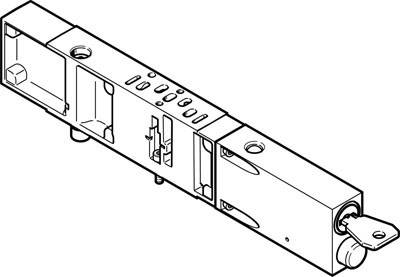

FESTO Vertical pressure limiter VABF-S4-2-L1D2-C 8001178 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 214.29 / piece)
€ 214.29
plus VAT.
14-day return policy included
Highlights & Details
VABF-S4-2-L1D2-C
Technical specifications
- Width 18 mm
- IP65 rating
- Ambient temperature: -5 °C to +50 °C
- Product weight: 231 g
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Vertical pressure limiter
- Content
1 pc(s)
- Manufacturer part #
8001178
- Type
Corrosion resistance class KBK: 0 - no corrosion stress
- Min. operating pressure
3 bar
- Max. operating pressure
10 bar
- Operating medium
Compressed air
- Operating temperature
-5 °C (min)
- Min. operating temperature
-5 °C
- Material
Aluminium (die-cast)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2124479 FESTO Vertical pressure limiter VABF-S4-2-L1D2-C 8001178 1 pc(s)
Description
Vertical printing locking plate VABF-S4-2-L1D2-C Width = 18 mm, based on standard = ISO 15407-2, mounting position=any, Operating pressure = 3 - 10 bar, according to ISO 8573-1:2010 operating medium = compressed air [7:4:4]
