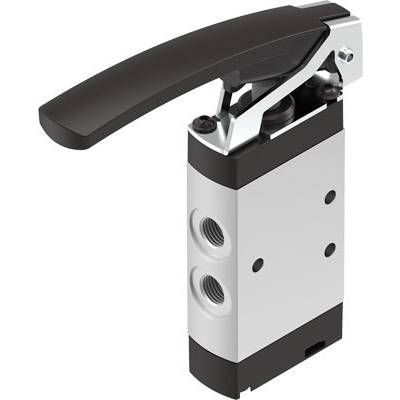

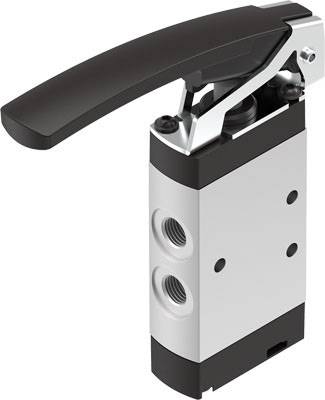

FESTO VHEF-L-M52-M-G18 Pushbutton valve -0.95 up to 10 bar 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Mounting type: With Through Hole
- Operating medium
Compressed Air
- Type
Class 1 - Low corrosion stress corrosion resistance: KBK
- Manufacturer part #
4500001
- Connection
G 1/8
- Max. operating pressure
10 bar
- Operating pressure (min.)
-0.95 bar
- Pressure range
-0.95 up to 10 bar
- Operation type
manually
- Sealant
NBR
- Max. flow
750 l/min
- Function
5/2 mono-stable
- Enclosure material
Aluminium wrought alloy
- Weight
185 g
- Max. media temperature
+60 °C
- Media temperature (min.)
-10 °C
- Nominal width
5.2 mm
- Width
20 mm
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- Operation
manual
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2124287 FESTO VHEF-L-M52-M-G18 Pushbutton valve -0.95 up to 10 bar 1 pc(s)
Description
Push lever valve VHEF-L-M52-M-G18 valve function = 5/2, mono-stable, operating method = manual, Width = 20 mm, normal rated flow = 750 l / min, Operating pressure = -0,95 - 10 bar
