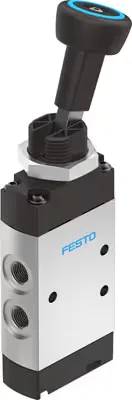

FESTO VHEF-V-M52-M-G18 Lever-operated valve -0.95 up to +10 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
14-day return policy included
Technical specifications
- Product type
Wheel lever valve
- Manufacturer part #
5300032
- Connection
G 1/8
- Max. operating pressure
+10 bar
- Operating pressure (min.)
-0.95 bar
- Pressure range
-0.95 up to +10 bar
- Sealant
NBR
- Function
reducable
- Enclosure material
Aluminium wrought alloy
- Weight
208 g
- Max. media temperature
+60 °C
- Media temperature (min.)
-10 °C
- Nominal width
5.2 mm
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- Switching frequency
0.5 Hz
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2800264 FESTO VHEF-V-M52-M-G18 Lever-operated valve -0.95 up to +10 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2800264 FESTO VHEF-V-M52-M-G18 Lever-operated valve -0.95 up to +10 bar 1 pc(s)
Description
Flip lever valve VHEF-V-M52-M-G18 valve function=5/2 monostable, operating mode=manual, width=20 mm, normal nominal flow=750 l/min, operating pressure MPa=-0.095 - 1 MPa
