FGM Eltako Wireless Chime Mounting brackets

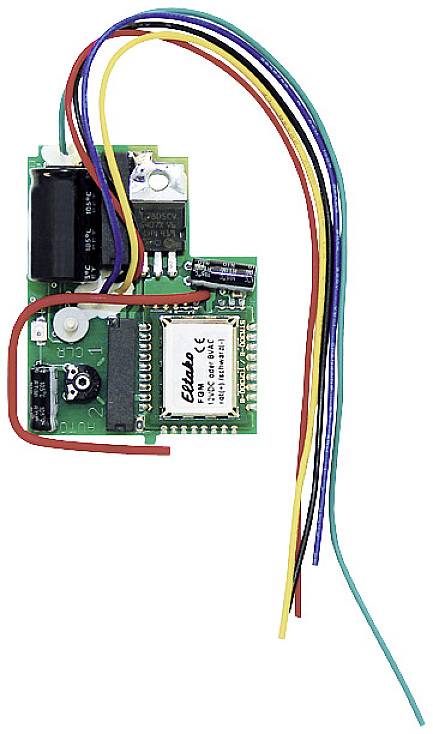

Wireless gong module for mounting in the 3x AA battery compartment of gongs or in every other plastic casing. Standby loss of only 0.5 watt. 52 mm long, 42 mm wide and 16 mm deep. This radio module is suitable among other things for all gong's, which can be powered by 3 AA batteries as well as 8 to 12V UC transformer connector and activated with one contact. The gong module FGM can also fit into the substantially larger battery compartment for 3 or 4 baby cells. The gong module is inserted in the battery compartment of the gong and connected to the connection clamps of the gong according to the instructions for use. The power for the gong and the wireless module is supplied by a switched-mode power supply SNT61-230V/12V DC-0.5A, which is mounted in a flush-mounted socket behind the gong and needs a 230V connection. Normal buttons can also be connected to the corresponding connection clamps of the gong. A rotary switch is located on the PCB for programming. Then it is set to AUTO (all the way to the right). Apart from one or more radio buttons, the radio window door contacts FTK, motion brightness sensors FBH and window handle sensor FFG7B-RW can also be taught in. The LED accompanies the programming process according to the operating instructions and indicates radio control commands during operation by a short flash.

This text is machine translated.
