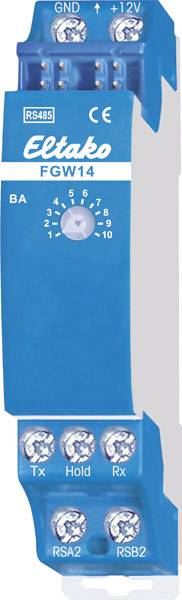

FGW14 Eltako RS485 LAN gateway DIN rail
EAN:
Part number:
Item no:
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Product type
LAN gateway
- Series
Eltako
IP20
- Power supply (LOV)
via PSU bus
- Operating voltage
12 V
- Mounting type
DIN rail
- Data transfer (Smart Home)
RS485
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
- Weight
0.09
DRA (DIN-rail adapter)
Multiple interface
12 V
DC
0.5 W
FALSE
TRUE
FALSE
1
None
FALSE
FALSE
FALSE
FALSE
Other
FALSE
FALSE
FALSE
FALSE
12-12 V
IP20
FALSE
FALSE
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2162330 FGW14 Eltako RS485 LAN gateway DIN rail
Description
Multi-gateway. Bidirectional. Standby loss of only 0.5 watts. Series installation device for mounting on mounting rail. The gateway is only 1 TE wide, but can be used several times: For coupling up to three radio receiver modules, for direct connection via the RS232 interface with the PC, for connecting with the bus components of the older series 12 or as a bus connector of two RS485 buses of the series 14. Connection to the Eltako RS485 bus. Cross-wiring bus and power supply with jumper. The hold terminal is connected to the FAM14 or FTS14KS. Radio receiver modules are connected in parallel to the sub-bus terminals RSA2 and RSB2 as well as the power supply terminals GND and +12V. Up to 10 push-button input modules FTS12EM may be connected in series to the sub-bus terminals RSA2 and RSB2, possibly in series with radio receiver modules FEM. The PC connection is made by connecting to terminals Tx and Rx. Series 12 actuators are connected to the RSA2 and RSB2 sub-bus terminals. There is no hold connection here. A second series 14 bus is fed in via terminals RSA2/RSB2. The operating mode rotary switch BA is set according to the operating instructions.
