Buy FHK61SSR-230V Eltako Wireless Actuator Flush mount Switching capacity (max.) 400 W

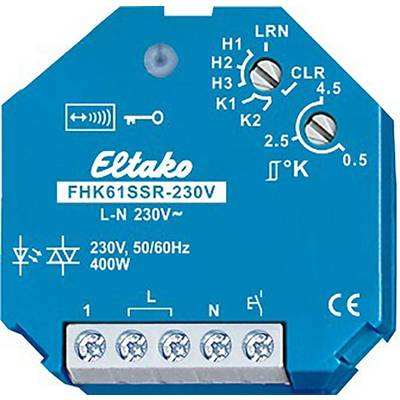

Central Receiver FHK61SSR-230V, 230V, 50/60Hz, 400W. Device in blue with multiple connection points and adjustment buttons.

Datasheet (PDF)

Dispatches on Thu, 1 Oct

18 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 65.54 / piece)

€ 65.54

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Product type: Actuator

Series: Eltako

Dim: (W x D) 45 mm x 33 mm

Max. switching capacity: 400 W

: IP20

Operating voltage: 230 V AC

Mounting type: Flush mount

Data transfer (Smart Home): Wireless

Width: 45 mm

Depth: 33 mm

Hub: Not required, optional for remote access

Data exchange: Bidirectional (bi)

: n.rel.

Switching current (max.): 4 A

: Flush mounted (plaster)

: 1

: 1.7 A

: 4 A

: FALSE

: TRUE

: FALSE

: TRUE

: 0

: None

: FALSE

: 230-230 V

: IP20

: TRUE

: TRUE

: FALSE

: TRUE

: FALSE

: TRUE

: TRUE

: 33 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2636407 FHK61SSR-230V Eltako Wireless Actuator Flush mount Switching capacity (max.) 400 W

User & Safety Instructions

User & Safety Instructions 2636407 FHK61SSR-230V Eltako Wireless Actuator Flush mount Switching capacity (max.) 400 W

Description

Single room regulation noiseless, 400W. Solid-state relay not potential-free. Standby loss of only 0.8 watt. Encrypted radio, bi-directional radio and repeater function can be connected. For panel mounting. 45 mm long, 45 mm wide, 33 mm deep. For a load< of 1W, a GLE must be connected in parallel to the load. This heating/cooling relay evaluates the information of radio temperature regulators or sensors. Added to window-door contacts, motion sensors, window handle sensors FFG7B-RW and radio button. Encrypted sensors can be taught in from manufacturing week 11/14. Bidirectional radio and/or a repeater function can be switched on. Each change of function (normal operation, lowering mode, off) is confirmed with a radio telegram. This radio telegram can be taught in the GFVS software. Upper rotary switch for the operating modes. The LED accompanies the programming process according to the operating instructions and indicates radio control commands during operation by a short flash.

This text is machine translated.
