Fiamm 12FGHL34 139640 VRLA 12 V 8400 mAh AGM (W x H x D) 151 x 101 x 65 mm 6.35 mm blade terminal
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 33.61 / piece)
€ 33.61
plus VAT.
14-day return policy included
Highlights & Details

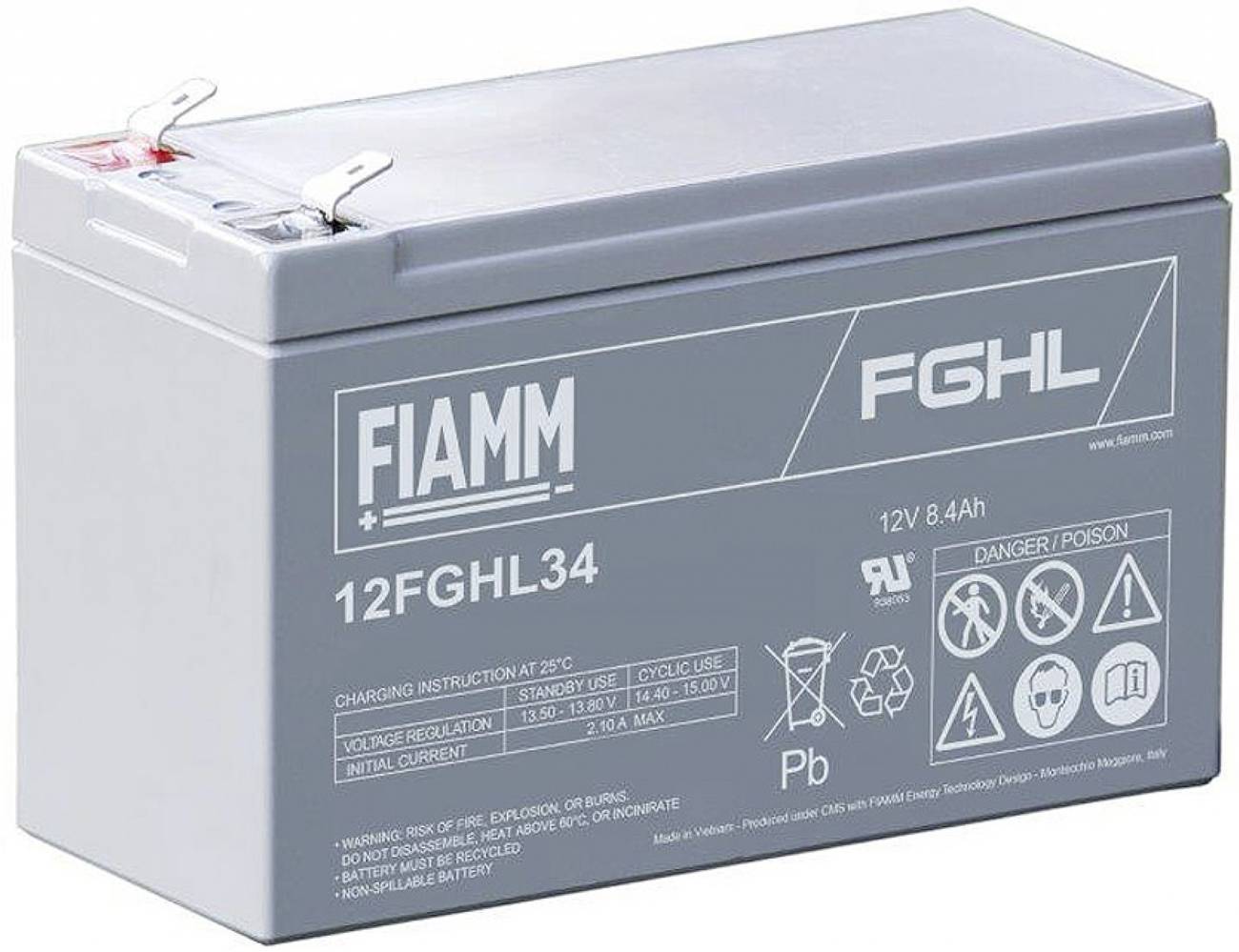

Fiamm lead battery 12FGHL34 AGM, high current long life, Faston 6.3 mm
- Battery for rapid discharge in flame-retardant casing
- Compact industrial batteries
- 5 years durability
- AGM technology
Technical specifications
- Dim
(W x H x D) 151 x 101 x 65 mm
- Product type
VRLA
- Technology
AGM
- Voltage
12 V
- Capacity (mAh, Ah)
8400 mAh
- Height
101 mm
- Weight
2800 g
- Content
1 pc(s)
- Type
12FGHL34
- Rechargeable
Yes
- Connector
6.35 mm blade terminal
- Depth
65 mm
- Width
151 mm
Documents & Downloads
Datasheet
Datasheet 3796413 Fiamm 12FGHL34 139640 VRLA 12 V 8400 mAh AGM (W x H x D) 151 x 101 x 65 mm 6.35 mm blade terminal
Conformity certificate
Conformity certificate 3796413 Fiamm 12FGHL34 139640 VRLA 12 V 8400 mAh AGM (W x H x D) 151 x 101 x 65 mm 6.35 mm blade terminal
Security datasheet
Security datasheet 3796413 Fiamm 12FGHL34 139640 VRLA 12 V 8400 mAh AGM (W x H x D) 151 x 101 x 65 mm 6.35 mm blade terminal
Description
The FGHL series provides maximum power for emergency power supply, e.g. with UPS devices, and is classified as "long life" according to EUROBAT, which means a service life of 10 years. The series covers a wide range of applications that require absolute reliability.
The products meet the requirements of the most stringent international standards and the flame-retardant ABS-plastic conforms to the UL94 V0 standard (LOI over 28%). This means more safety in UPS high-voltage applications.
The FGHL series is based on AGM-VRLA technology, is fully recyclable and maintenance-free. The FGHL series is classified as non-hazardous for transport by air and sea, road and rail. The batteries of the FGHL series can be installed horizontally or on the side.
This text is machine translated.
The products meet the requirements of the most stringent international standards and the flame-retardant ABS-plastic conforms to the UL94 V0 standard (LOI over 28%). This means more safety in UPS high-voltage applications.
The FGHL series is based on AGM-VRLA technology, is fully recyclable and maintenance-free. The FGHL series is classified as non-hazardous for transport by air and sea, road and rail. The batteries of the FGHL series can be installed horizontally or on the side.
This text is machine translated.
