FIAP 1271 profiair OxySmart 10.000 Pond air pump 10000 l/h
EAN:
Part number:
Item no:
Highlights & Details

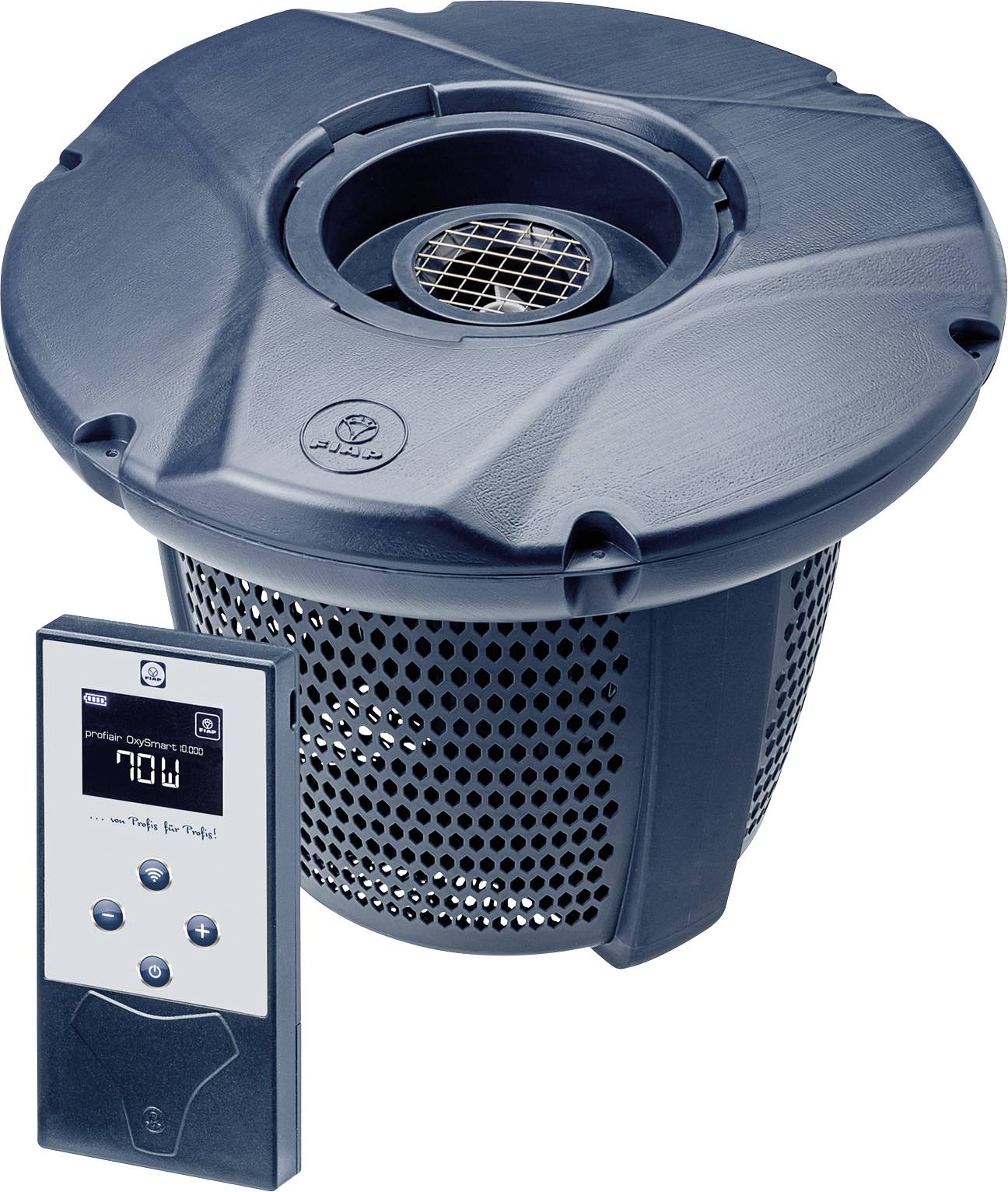

FIAP 1271 professional OxySmart 10,000 pond aerator with remote control
- Professional, adjustable pond aerator for supplying oxygen to water surfaces up to 20 m²
- Energy-efficient motor - power consumption 20 - 70 watt
- Including AQUA ACTIVE MultiControl remote control, power change in 10 watt steps (20 - 70 W)
- Water discharge up to max. 10,000 liters per hour
- Discharge height up to max. 1.2 meters
- Ejection circle up to max. 1.4 meters
- Action zone up to max. 8.0 meters
- Optimum oxygen supply for the water or basin
- Bayonet connector for easy installation and maintenance
- Stable float for exceptional stability and noise reduction
- Protective basket (8 mm hole) made from high-quality ABS plastic
- Inclusive of 3 compatible nozzles for different ventilation profiles and cymbal conditions
- Excellent weather resistance
- Cable length approx. 15 meters
- PROFESSIONAL QUALITY from FIAP
Technical specifications
- Maximum delivery height in meters: 0.2 - 1.2
- Option to set up: Dipped
- Maximum pond size in square meters: 20
- Ejection in meters: 0.2 - 1.4
- Radio frequency in GHz: 2.4
- Effect zone in meters: 8.0
- Minimum water depth in meters: 0.35
- Suction zone – depth in meters: 0.85
- Dimensions in millimeters: Ø 360 x 420
- Product type
Pond air pump
- Power consumption
70 W
- Max. air volume
10000 l/h
- Factory colour
Blue
- Cable length
15 m
- Dim
(Ø) 420 mm
- (Ø)
420 mm
- Weight
3.8 kg
- Operating voltage
230 V
- Immersion depth
35 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3760813 FIAP 1271 profiair OxySmart 10.000 Pond air pump 10000 l/h
Description
Professional pond aerator for aquaculture - efficient ventilation directly where oxygen is required!
The floating, adjustable pond aerator proffair OxySmart 10,000 from FIAP provides a reliable oxygen supply for small and medium-sized water up to 20 m².
The energy-efficient motor with a power consumption of 20 - 70 watt generates a maximum water discharge of up to 10,000 liters per hour.
The AQUA ACTIVE MultiControl remote control, included in the delivery, can be connected easily with the integrated chip in the pump motor.
With this you can increase or reduce the power of the pump motor in steps of 10 watt (20 to 70 watt).
The ejection height is max. 1.2 meters and the ejection circle max. 1.4 meters.
With an action zone of up to 8.0 meters, the water is enriched evenly with oxygen and harmful gases can escape.

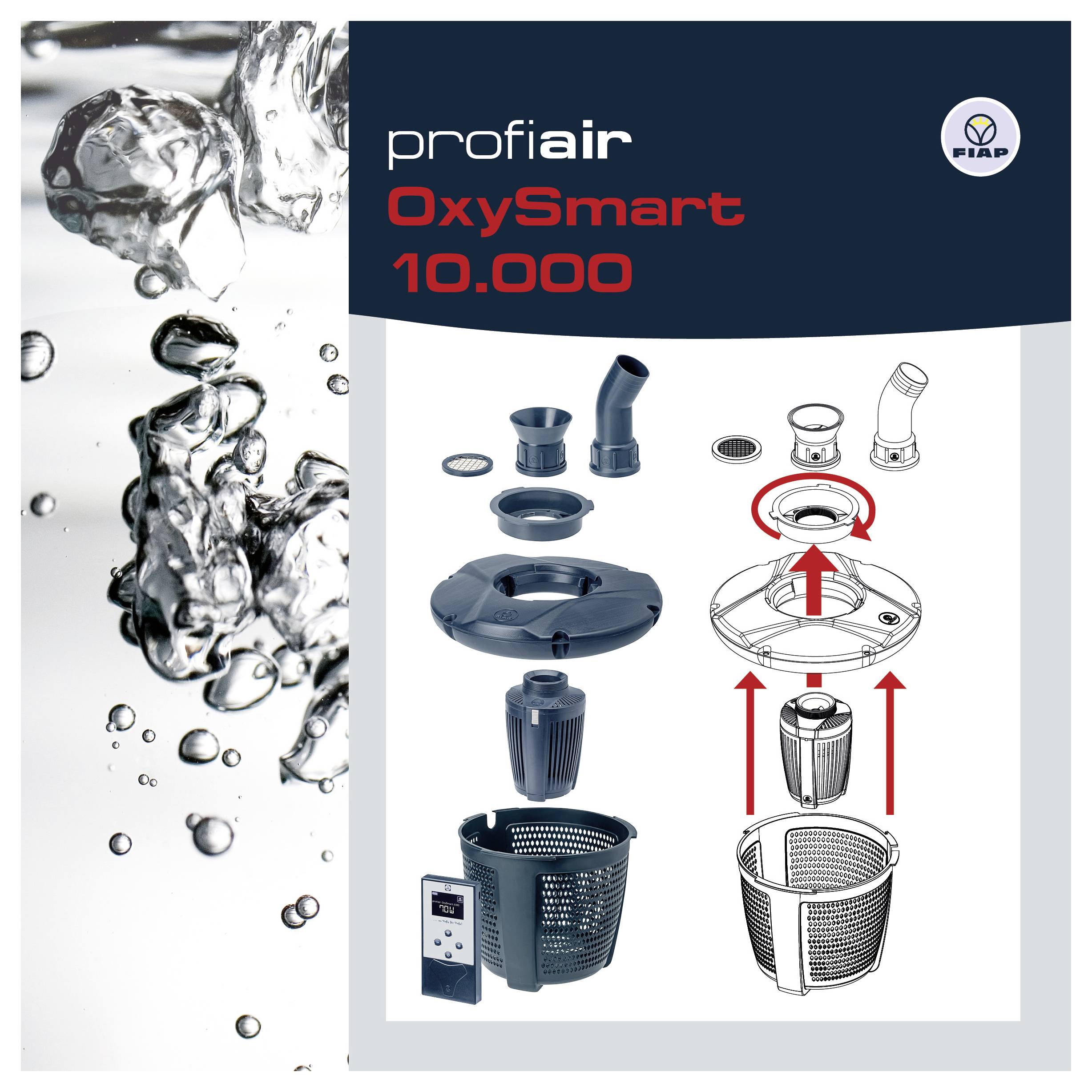

The clever design with bayonet lock means that assembly and maintenance of the air vent is carried out effortlessly and without tools.
A high-quality protective basket (8 mm hole) protects the motor from foreign objects over a large area.
In addition, the float stabilizes the pond aerator in the water and achieves a significant noise reduction.
The delivery includes three compatible nozzles that cover different ventilation profiles and basin conditions.
Versatile, because of excellent weather resistance and a cable length of approx. 15 meters.
...From professionals for professionals!
