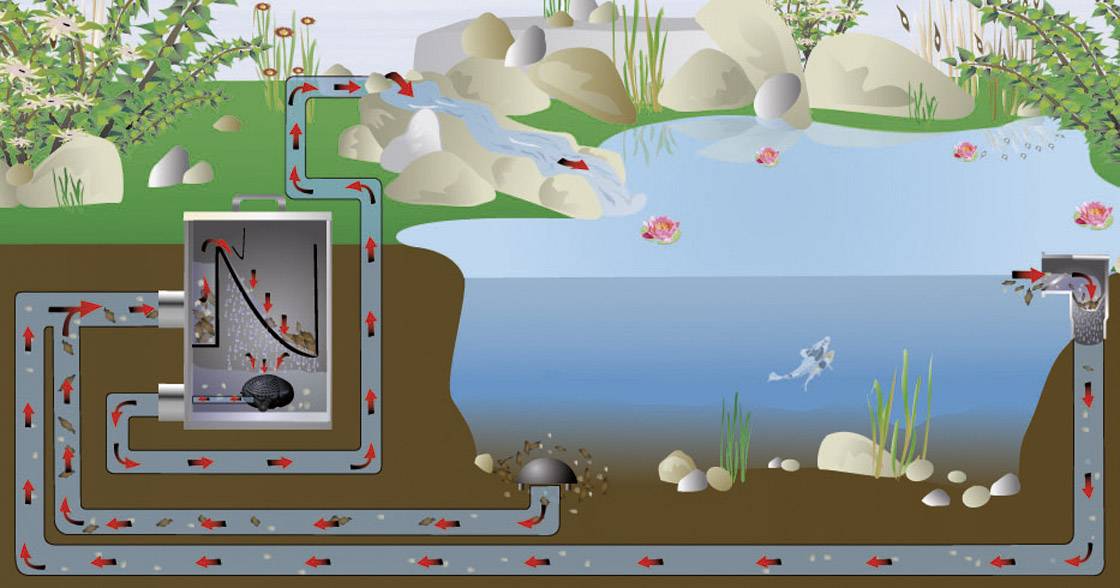

A diagram of a pond with a filtration system. Water flows from the pond through pipes into a filter and back. Arrows indicate the direction of flow.

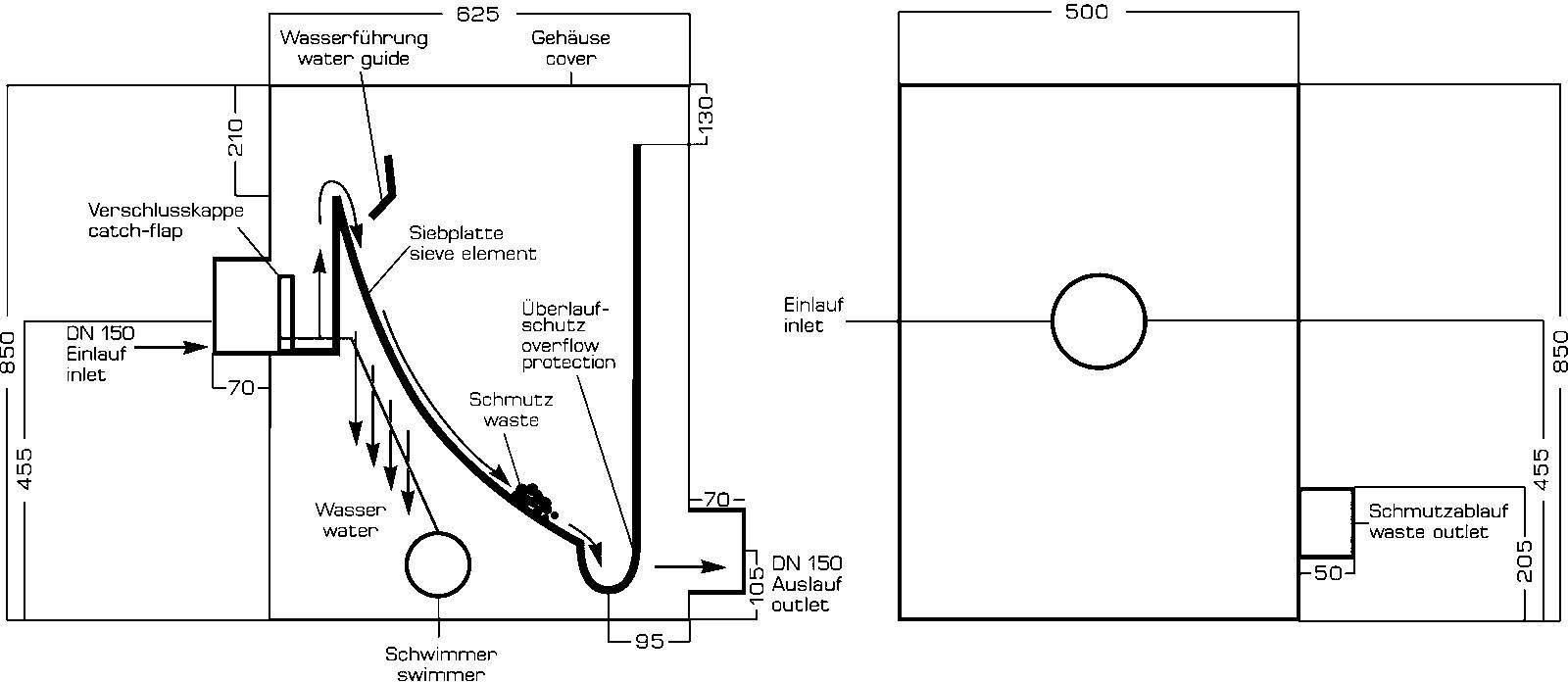

'Technical drawing of a water piping system with inlet, outlet, and float system. Dimensions and components are labelled.'

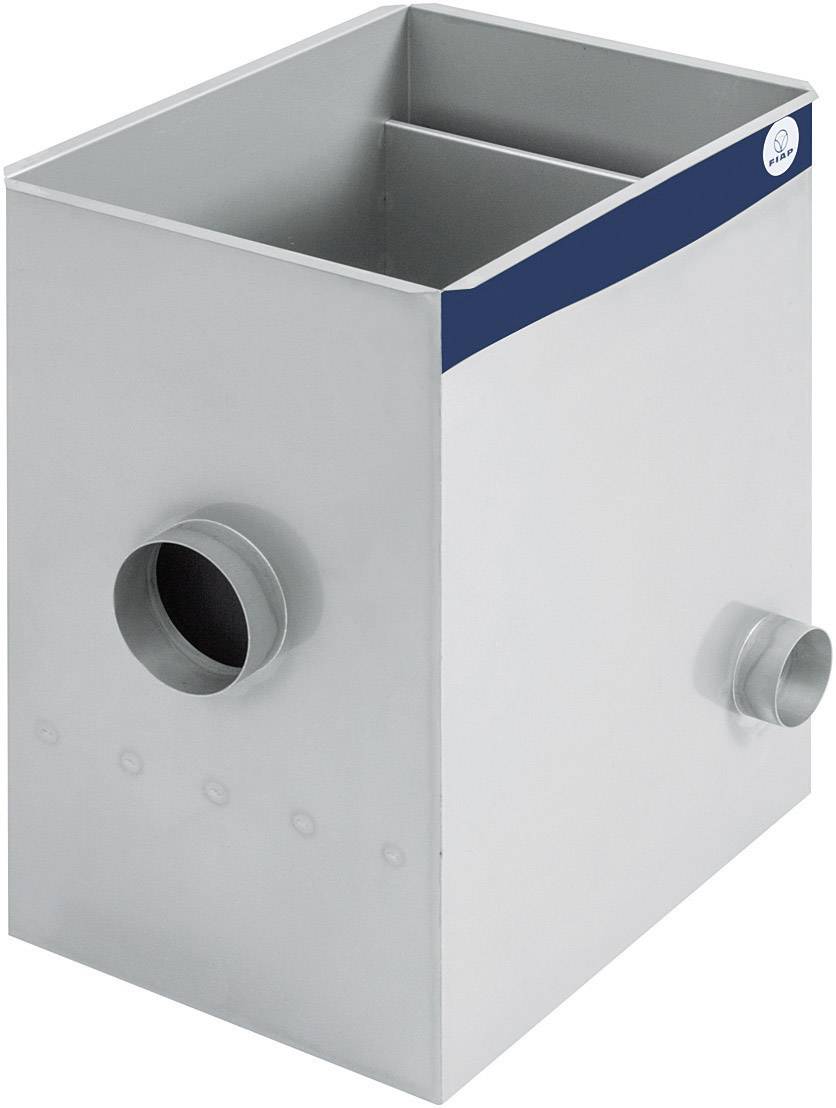

Rectangular plastic container with two round connections on opposite sides, used for ventilation or drainage.

1/5

FIAP

Dispatches on Thu, 24 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 2,133.61 / piece)

€ 2,133.61

plus VAT.

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

FIAP GAP ACTIVE 22,000 Gravity - mechanical coarse dirt filter made of stainless steel

For gravity Use

Technical specifications

Product type: Passage filter

Max. feed rate: 22000 l/h

Type: 22000 gravity version

Dim: (L x W x H) 625 x 500 x 850 mm

Length: 625 mm

Width: 500 mm

Height: 850 mm

Weight: 45 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 520981 FIAP 2854 Passage filter

Description

Low maintenance and space-saving filter for the mechanical water treatment in garden ponds as well as the natural swimming pools. Effective oxygen enrichment below the fiap split screen active. Simple installation and maintenance. Reliably removes dirt particles> 300 μ. Biomodule suitable as a complete solution in the fiap filter program. Energy and water-saving. Lower nitrate and phosphate values by separation of dirt and feces from the water cycle.

This text is machine translated.
