Finder 12.51.8.230.0000 DIN rail mount timer 230 V AC Weekday settings, Week settings
EAN:
Part number:
Item no:
Type
Weekday settings
Week settings
Contact type
1 change-over
Switching voltage (max.)
250 V AC
Switching current (max.)
16 A
Product type
DIN rail mount timer
Datasheet (PDF)
Highlights & Details

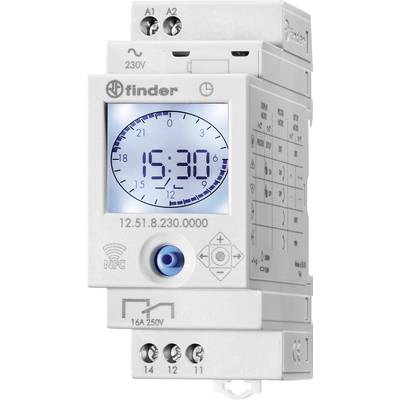

Electronic 1-channel timer with daily and weekly programs 12.51.8.230.0000
- Optional programming via NFC and smartphoneBacklit displayEasy to program daily, weekly programChangeover contact for max. 16 A switching current
Technical specifications
- Switch-on current: 120 A (5 ms) 30 A
- Testing voltage 4000 V
- Power consumption: 6.6 VA
- Air gap/creepage distance: 8 mm
- Isolation voltage: 4000 V
- Insulation category: C/250
- Type
12.51.8.230.0000
- Type
Weekday settings
Week settings
- Switching distance (min)
30 min
- No. of switching intervals
48
- Power reserve
6 years
- Operating voltage
230 V AC
- Min. operating voltage
96 V AC
- Max. operating voltage
253 V AC
- Operating voltage
96 - 253 V AC
- Contact type
1 change-over
- Contact material
AgSnO2
- Switching voltage (max.)
250 V AC
- Switching current (max.)
16 A
- Min. temperature
-20 °C
- Max. temperature
+50 °C
IP20
- Electrical lifespan
100 000 Switching cycles
- Durability
10000000 switching cycles
- Width
35 mm
- Height
88.8 mm
- Dim
(W x H) 35 mm x 88.8 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Factory colour
Multicolour
- Weight
0.0900 kg
DIN rail
35
60.8 mm
88.8 mm
Change-over contact (NO/NC)
2
AC
IP20
- Product type
DIN rail mount timer
Documents & Downloads
Datasheet
Datasheet 1342362 Finder 12.51.8.230.0000 DIN rail mount timer 230 V AC Weekday settings, Week settings
User & Safety Instructions
User & Safety Instructions 1342362 Finder 12.51.8.230.0000 DIN rail mount timer 230 V AC Weekday settings, Week settings
Information
Information 1342362 Finder 12.51.8.230.0000 DIN rail mount timer 230 V AC Weekday settings, Week settings
Description
Finally an excellent application for the NFC interface: Finger gestures instead of mechanical buttons, buttons or dials program the time switch 12.51. Here, FINDER uses the smartphone to communicate with the device. Smartphone apps are especially charming that they are clear and intuitive to use. The device for the DIN-rail can be configured completely with THE FINDER-Toolbox-App on the Smartphone. Once the configuration is complete, the data set is transferred to the timer clock – simply by placing the smartphone on the device's casing. Data transfer also works without power to the timer, as the smartphone itself makes sure the NFC chip receives the signal via induction. As a result, it can be conveniently configured in the office after unpacking, and is then immediately installed in the distribution or control cabinet.The LC display with backlight for set-up, programming and status is easy and can be read from almost any angle. An internal battery (replaceable) enables de-energized set-up, programming and status at a 6-year power reserve, and is used to maintain the program if the operating voltage fails. The simple programming of the daily and weekly schedule is naturally also possible with the Joy-Stick. The change-over from summer to winter time is preset. Shortest switching time 30 min. Safe separation between power supply and contacts, Cadmium-free contact material.
This text is machine translated.
This text is machine translated.
Hints
To program via NFC interface, you need the Finder Toolbox app for Android (Google Play Store) or the Finder Toolbox NFC app for iOS (APP Store). EAC approved
