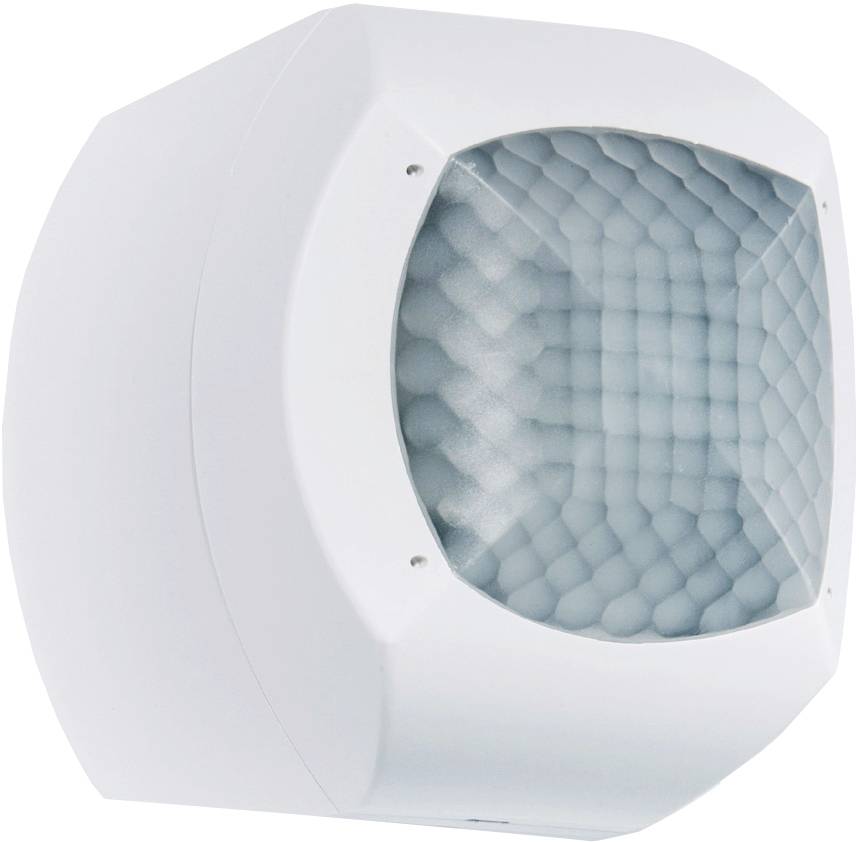

Finder 18.51.8.230.0040 Ceiling Motion detector 360 ° Relay White IP40
EAN:
Part number:
Item no:
Number
Total (€ 78.98 / piece)
€ 78.98
plus VAT.
14-day return policy included
Technical specifications
- Max. Inrush current 100 A.
- Control current 7 mA
- Connection type: Plug-in terminal
- Halogen-free: Yes
- Low-creep/back-field monitoring: Yes
- Installation depth: 31.6 mm
- Installation diameter 60 mm
- Suitable for: Wall mounting; ceiling mounting
- Optimum mounting height: 3 m.
- Frequency: 50 Hz - 60 Hz
- Staircase monitoring: Yes
- Material quality: Thermoplastic
- Max. Range to one side: 4 m.
- Detection area Diameter on floor: 8 m.
- Adjustable response sensitivity: Yes
- Suitable for C load: Yes
- With signal unit: Yes
- Adjustable response brightness: Yes
- Sensor type: Passive infrared
- Product type
Motion detector
- Detection angle
360°
4 m
- Mounting type
Ceiling
- Operating voltage
230 V AC
- Contact type
Relay
- Switching capacity
1000 W
- Voltage (max.)
230 V AC
- Switching capacity (energy saving bulbs)
300 W
- Switching capacity (light bulbs)
1000 W
- Switching capacity (LED)
300 W
- Switching capacity (light tubes)
500 W
- Standby current consumption
7 mA
- Twilight settings
1 lx - 500 lx
- Time settings
12 s - 35 min
- Factory colour
White
- Similar RAL
9010
IP40
- Operating temperature
-10 °C - 50 °C
- Type
Plastic, matt, remote-controllable
- Length
66.7 mm
- Width
84 mm
- Height
84 mm
- (Ø)
60 mm
- Dim
(Ø x H) 60 mm x 84 mm
- Voltage (min.)
110 V AC
Flush mounted (plaster)
White
Movement sensor
TRUE
71.6 mm
Push-in clamp
Untreated
AC
36.5 mm
50-60 MHz
FALSE
60 mm
Thermoplastic
100 A
Plastic
9010
110-230 V
IP40
FALSE
Matt
FALSE
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2473720 Finder 18.51.8.230.0040 Ceiling Motion detector 360 ° Relay White IP40
Description
Motion and presence detector with connection possibility for separate button, detection range up to 64 m²: 4x4 m as presence detector, 8x8 m as motion detector, 1 closer for 10 A, max. switch-on current 100 A - 5 ms, contact material AgSnO2, suitable for ceiling, flush or surface mounting. Accessories for different mounting variants included in the accessories pack. Max. Switching capacity AC1 2300 VA, max. switching capacity AC15 450 VA. Lamp loads: Incandescent and halogen lamps 1000 W, energy-saving lamps 300 W, LED (230 V AC) 300 W, LV halogen lamps or LED with EVG 300 W, LV halogen lamps or LED with KVG 500 W, fluorescent lamps with EVG 500 W, fluorescent lamps with KVG 350 W, device switches at zero crossing, integrated setting options for brightness threshold 1-500 lx, Off-delay time and sensitivity (reduction of detection range), quick connection by push-in terminals. Supply voltage 110-230 V AC
