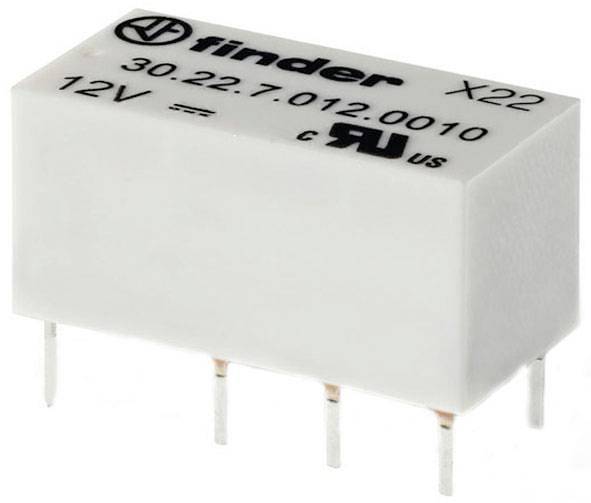

Image similar
Image similar
Finder 30.22.7.005.0020 PCB relay 5 V DC 2 A 2 change-overs 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
PCB relay
Coil nominal voltage
5 V DC
Control mode
monostable, 1 coil
Contact type
2 change-overs
Technical specifications
- Packaging type
Piece
- Product type
PCB relay
- Type
30.22.7.005.0020
- Coil nominal voltage
5 V DC
- Max. pick-up voltage
5 V DC
- Control mode
monostable, 1 coil
- Coil voltage rating
0.2 W
- Contact type
2 change-overs
- Contact material
Gold
- Switching voltage (max.)
125 V AC
- Switching current (max.)
2 A
- Max. switching capacity
375 VA
- Connection
Print
- Features
Washable (RT III)
IP67
- Width
10.1 mm
- Height
11.4 mm
- Depth
20.3 mm
- Dim
(W x H x D) 10.1 x 11.4 x 20.3 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
2 A
10.1 mm
11.4 mm
20.3 mm
FALSE
Polarity free
Mono stable
FALSE
Single contact
FALSE
PCB connection
5-5 V
Gold
IP67
FALSE
Other
DC
0
0
2
Thermoplastic
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3219316 Finder 30.22.7.005.0020 PCB relay 5 V DC 2 A 2 change-overs 1 pc(s) Piece
Description
Print relay with 2 changers for 3 A/125 V AC. Contact material AgNi hard gold plated, coil data 5 V DC, 0.2 W, 125 Ohm, relay protection type: RT III.
