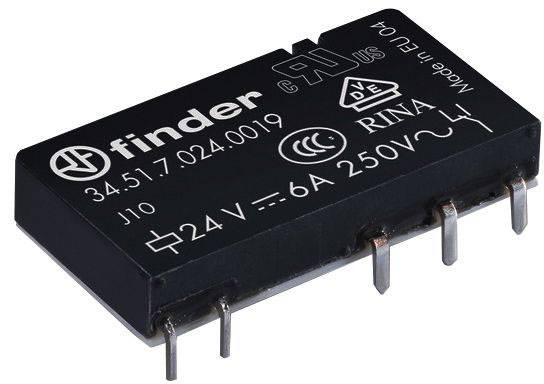

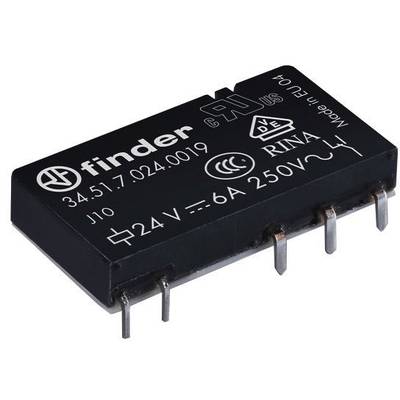

Finder 34.51.7.024.0019 PCB relay 24 V DC 6 A 1 change-over 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
PCB relay
Coil nominal voltage
24 V DC
Contact type
1 change-over
Switching voltage (max.)
250 V AC
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
Highlights & Details
Our service for you
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polar
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: No.
- Packaging type
Piece
- Product type
PCB relay
- Type
34.51.7.024.0019
- Coil nominal voltage
24 V DC
- Coil voltage rating
0.170 W
- Contact type
1 change-over
- Contact material
AgNi
- Switching voltage (max.)
250 V AC
- Switching current (max.)
6 A
- Connection
Pins
IP20
- Width
15 mm
- Height
5 mm
- Depth
28 mm
- Dim
(W x H x D) 15 x 5 x 28 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3323115 Finder 34.51.7.024.0019 PCB relay 24 V DC 6 A 1 change-over 1 pc(s) Piece
Description
Narrow PCB relay 1 changeover contact for 6 A/250 V AC, contact material AgNi, coil data 24 V DC, 0.170 W, 3350 Ohm, relay protection: RT II, horizontal with angled pins
