Buy Finder 38.51.0.048.0060 - 6A Relay Interface Module, EMR, N/A 250V AC

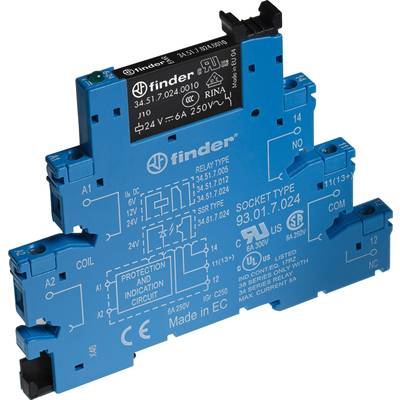

Blue Finder Relay Module for 250V, 6A, with circuit details and certification labels on the surface.

Image similar

Technical drawing of an electrical circuit diagram with dimensions. Left: Circuit with contacts, coil, and labelling. Right: Mounting surface with measurements.

'Circuit Diagram: U, I, Relay; shows connections and symbols with text 'Symbol' on the right. Diagram with rectangles and line at top left.'

1/3

Image similar

Datasheet (PDF)

29 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 17.64 / piece)

€

Report legal concerns

Highlights & Details

Finder 38.51.0.048.0060 - 6A Relay Interface Module, EMR, N/A 250V AC

N/A electromechanical relay
AgNi contacts
Screw terminals
Instant ejection of relay by plastic retaining clip
Integral coil indication and protection circuit
35mm rail (EN 60715) mounting

Technical specifications

Relay protection type: RT II

Type: 38.51.0.048.0060

Connection: Screw terminal

Contact type: 1 change-over

Contact material: AgNi

Nominal voltage: 48 V DC
48 V AC

Switching voltage (max.): 400 V AC

Switching current (max.): 6 A

Max. switching capacity: 1500 VA

Electrical lifespan: (AC1) 60 x 10³ switching cycles

Durability: 10 x 10⁶ switching cycles

: IP20

Max. temperature: +70 °C

Min. temperature: -40 °C

Length: 87.9 mm

Width: 6.2 mm

Height: 75.6 mm

Dim: (L x W x H) 87.9 x 6.2 x 75.6 mm

Content: 1 pc(s)

RoHS-compliant

Type: Coupler component 38.51 screw socket

Nominal voltage (details): 48 V DC/AC

Switching capacity: (DC1) 30 V/DC/(AC1) 1500 VA

Switching voltage: 250 V AC

Switching current: 6 A

Type: 38.51.0.048.0060

Ambient temperature: -40 - +70 °C

Connection: Screw terminals

Product type: Relay component

Documents & Downloads

Datasheet

Datasheet 503130 Finder 38.51.0.048.0060 - 6A Relay Interface Module, EMR, N/A 250V AC

User & Safety Instructions

User & Safety Instructions 503130 Finder 38.51.0.048.0060 - 6A Relay Interface Module, EMR, N/A 250V AC

Description

The installed relays are easily replaced. Sensitive control "Safer separation" according to VDE 0160/EN 50178.

Scope of delivery

Relay 34.51
Screw socket 93.01
LED
Voltage peaks suppression device
Holding/dismantling clip.

Hints

Approvals: VDE/UL/CSA.
