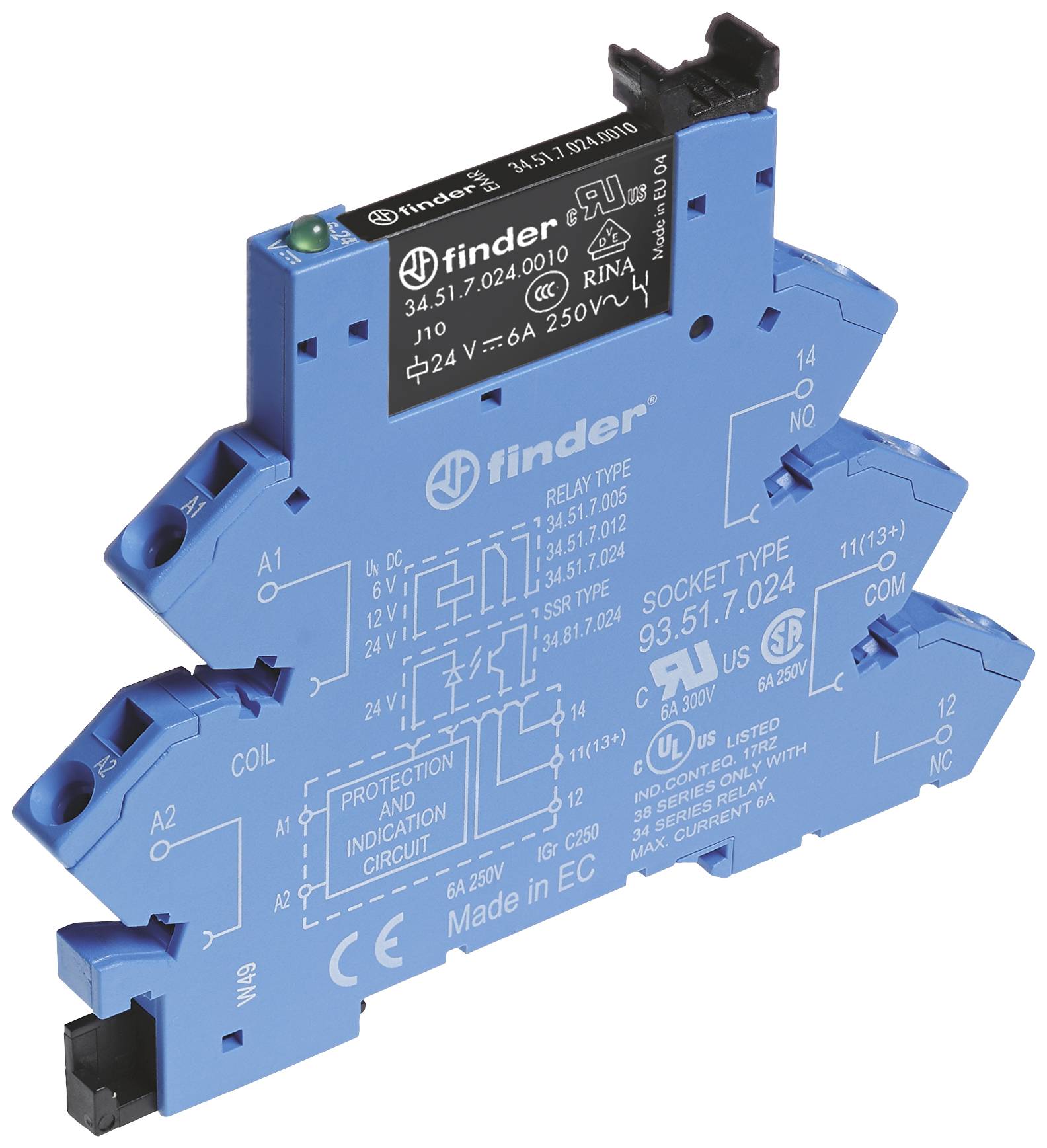

Finder 38.61.7.024.4050 Crossbar switch 24 V DC 6 A 1 change-over Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Crossbar switch
Contact type
1 change-over
Nominal voltage
24 V DC
Switching voltage (max.)
250 V AC
Technical specifications
- Packaging type
Piece
- Product type
Crossbar switch
- Type
38.61.7.024.4050
- Connection
Spring-loaded connector
- Contact type
1 change-over
- Contact material
AgSnO2
- Nominal voltage
24 V DC
- Switching voltage (max.)
250 V AC
- Switching current (max.)
6 A
- Features
+ LED
IP20
- Depth
76 mm
- Width
6.2 mm
- Height
93.6 mm
- Dim
(W x H x D) 6.2 x 93.6 x 76 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Control mode
monostable, 1 coil
6 A
6.2 mm
93.6 mm
76 mm
FALSE
Polarized
Mono stable
FALSE
Single contact
TRUE
Spring clamp connection
24-24 V
Untreated
IP20
TRUE
Other
DC
0
0
1
Thermoplastic
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3219436 Finder 38.61.7.024.4050 Crossbar switch 24 V DC 6 A 1 change-over Piece 1 pc(s)
Description
Coupling relays for DIN rail with tension spring terminals, 1 changers 6 A / 250 V AC, coil voltage 24 V DC, contact material-AgSnO2, LED and EMC interference suppression are integrated in the socket
