Finder 38.62.8.230.0060 Crossbar switch 230 V AC 8 A 2 change-overs 10 pc(s)
Item no:
Product type
Crossbar switch
Contact type
2 change-overs
Nominal voltage
230 V AC
Switching current (max.)
8 A
Type
38.62.8.230.0060
Datasheet (PDF)
Total (€ 23.95 / piece)
€ 239.50
plus VAT.
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polarized
- Switching behavior of the drive: Monostable
- With forced contacts: No.
- Type of switch contact: Single contact
- Complete unit with base: Yes
- Product type
Crossbar switch
- Type
38.62.8.230.0060
- Connection
Spring-loaded connector
- Contact type
2 change-overs
- Nominal voltage
230 V AC
- Switching current (max.)
8 A
- Features
+ LED
IP20
- Depth
77.1 mm
- Width
14 mm
- Height
93 mm
- Dim
(W x H x D) 14 x 93 x 77.1 mm
- Content
10 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2474512 Finder 38.62.8.230.0060 Crossbar switch 230 V AC 8 A 2 change-overs 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2474512 Finder 38.62.8.230.0060 Crossbar switch 230 V AC 8 A 2 change-overs 10 pc(s)
Description

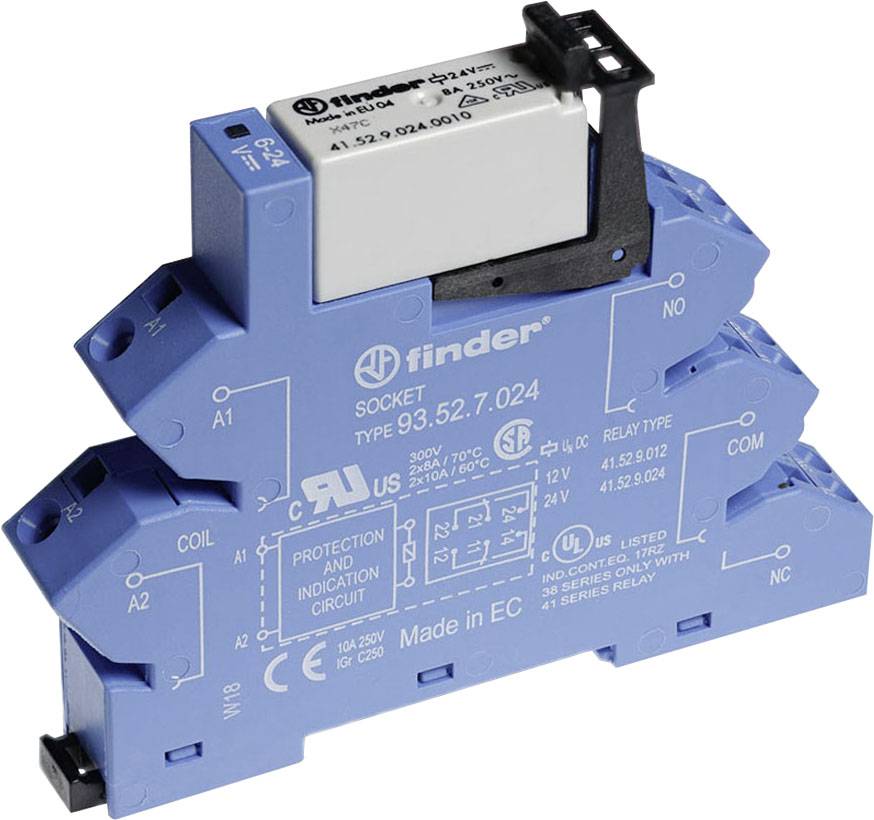

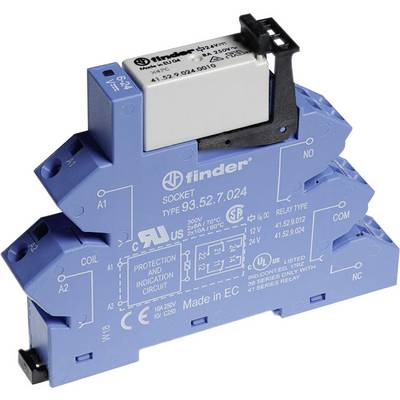

Coupling relays for DIN rail with tension spring terminals, 2 changeover contacts 8 A / 250 V AC coil voltage 230 V AC, contact material AgNi, LED and EMC interference suppression are integrated in the socket
