Finder 39.60.7.220.9024 Crossbar switch 1 maker Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Crossbar switch
Contact type
1 maker
Switching voltage (max.)
24 V DC
Type
39.60.7.220.9024
Technical specifications
- Packaging type
Piece
- Product type
Crossbar switch
- Type
39.60.7.220.9024
- Connection
Push-in connector
- Max. pick-up voltage
220 V DC
- Contact type
1 maker
- Switching voltage (max.)
24 V DC
- Features
+ LED
- Content
1 pc(s)
- RoHS-compliant
Yes
- Current load (max.)
6 A
- Output voltage (max.)
33 V DC
- Output voltage (min.)
1.5 V DC
6 A
DC
Electronic
220-220 V
1.5-33 V
TRUE
DC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3219356 Finder 39.60.7.220.9024 Crossbar switch 1 maker Piece 1 pc(s)
Description

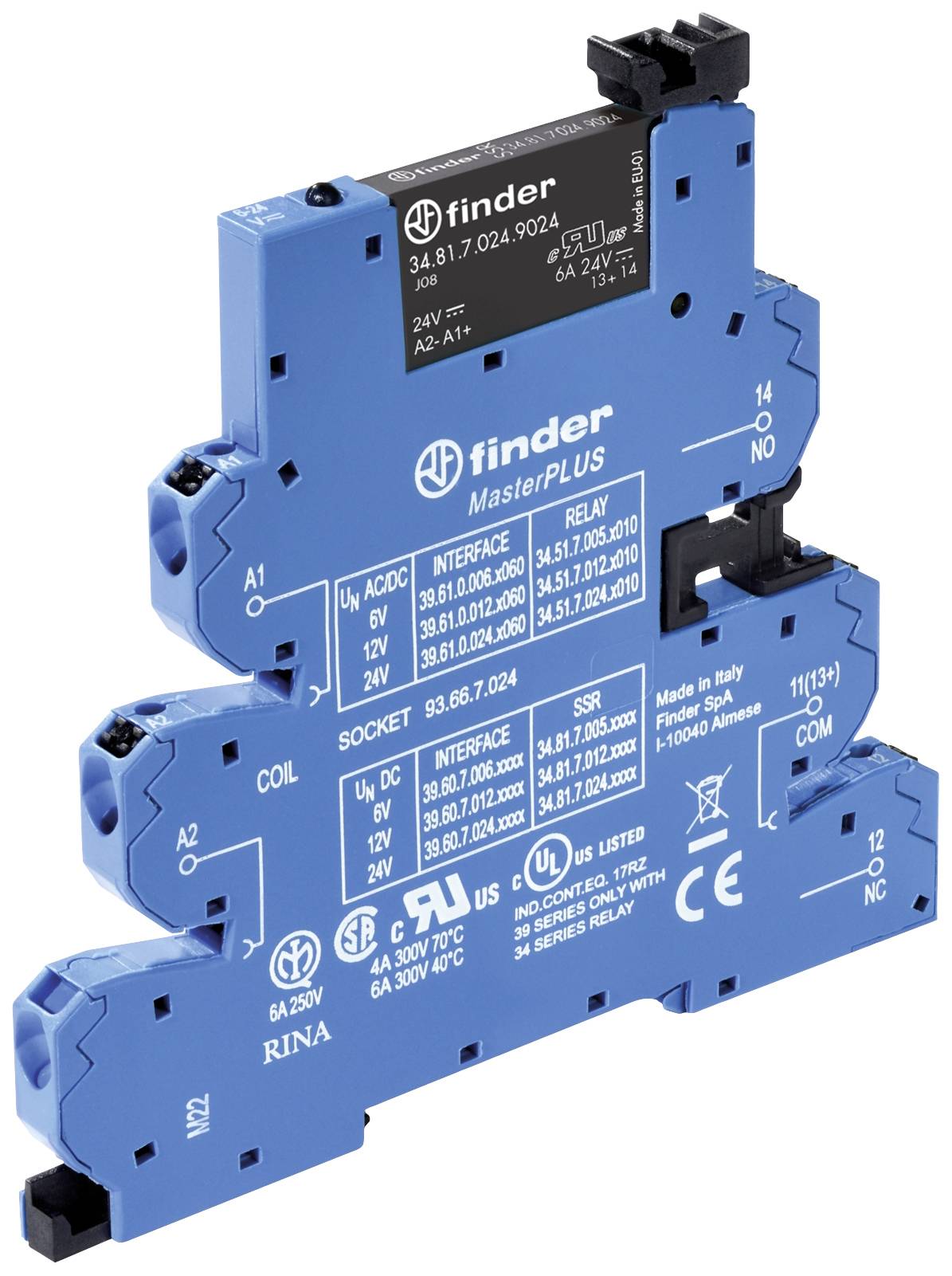

MasterPLUS narrow coupling relay for DIN rail, with push-in terminals, modular design, SSR contacts 1 NO 6 A 24 V DC, universally used as coupling relay in the input to the PLC or in the output of the PLC for controlling actuators, LED display, terminals A1 or A2 and 13+ are bridgeable, Output fuse module type 093.63 for 5 x 20 mm fine-wire fuses can be used instead of the dummy plug, coil voltage 220 V DC
