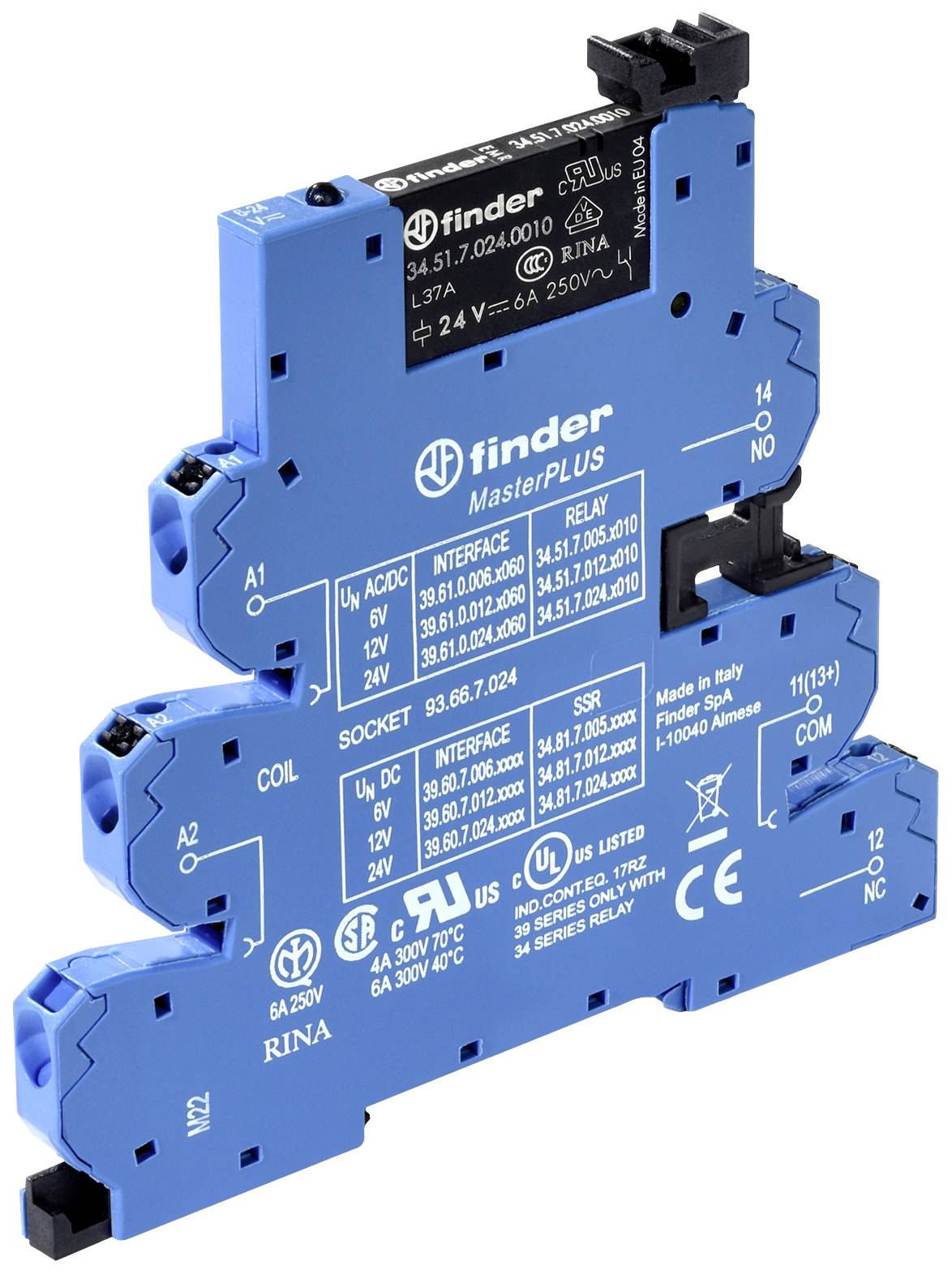

Image similar
Finder 39.61.0.060.0060 Crossbar switch 60 V DC/AC 6 A 1 change-over Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Crossbar switch
Contact type
1 change-over
Nominal voltage
60 V DC/AC
Switching voltage (max.)
60 V DC/AC
Technical specifications
- Packaging type
Piece
- Product type
Crossbar switch
- Type
39.61.0.060.0060
- Connection
Push-in connector
- Contact type
1 change-over
- Contact material
AgNi
- Nominal voltage
60 V DC/AC
- Switching voltage (max.)
60 V DC/AC
- Switching current (max.)
6 A
- Features
+ LED
IP20
- Depth
90.7 mm
- Width
6.2 mm
- Height
94.3 mm
- Dim
(W x H x D) 6.2 x 94.3 x 90.7 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Control mode
monostable, 1 coil
6 A
6.2 mm
94.3 mm
90.7 mm
FALSE
Polarity free
Mono stable
FALSE
Single contact
TRUE
Plug-in connection
60-60 V
60-60 V
60-60 V
Untreated
IP20
TRUE
Other
AC/DC
0
0
1
Thermoplastic
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3219364 Finder 39.61.0.060.0060 Crossbar switch 60 V DC/AC 6 A 1 change-over Piece 1 pc(s)
Description
MasterPLUS narrow coupling relay for DIN rail, with push-in terminals, modular design, 1 changer for 6 A, contact material AgNi, universal as interface relay in the input to the SPS or can be used in the output of the SPS for controlling actuators, LED display, terminals A1 or A2 and 11 are bridgeable, Output fuse module type 093.63 for 5 x 20 mm fine-wire fuses instead of dummy plug used, coil voltage 48-60 V AC/DC
