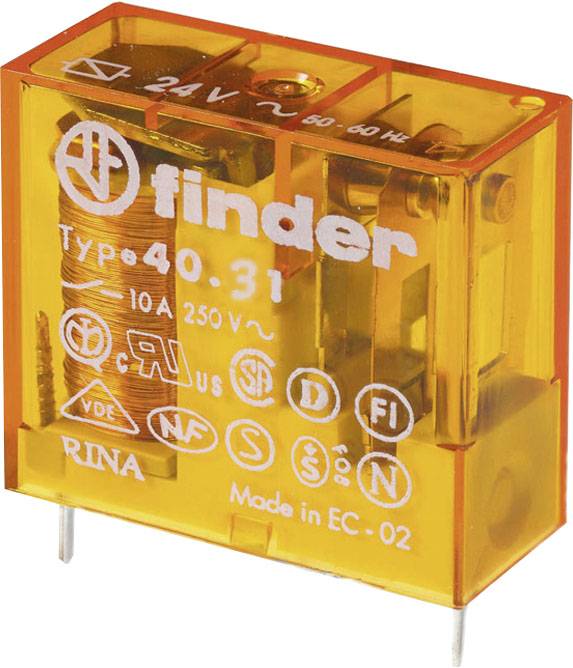

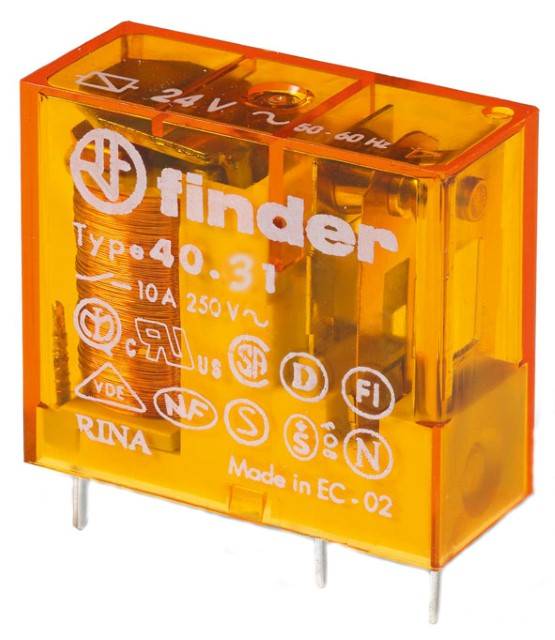

Finder 40.31.8.048.0000 PCB relay 48 V AC 10 A 1 change-over 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
PCB relay
Coil nominal voltage
48 V AC
Contact type
1 change-over
Switching voltage (max.)
250 V AC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polar
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: No.
- Packaging type
Piece
- Product type
PCB relay
- Type
40.31.8.048.0000
- Coil nominal voltage
48 V AC
- Max. pick-up voltage
48 V AC
- Coil voltage rating
1.2 VA
- Contact type
1 change-over
- Contact material
AgNi
- Switching voltage (max.)
250 V AC
- Switching current (max.)
10 A
- Max. switching capacity
2500 VA
- Connection
Jack connector
IP20
- Width
12.4 mm
- Height
25 mm
- Depth
29 mm
- Dim
(W x H x D) 12.4 x 25 x 29 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
10 A
12.4
25 mm
29 mm
20 A
FALSE
Polarity free
Mono stable
FALSE
Single contact
FALSE
PCB connection
48-48 V
48-48 V
AC
FALSE
38.4-52.8 V
38.4-52.8 V
AC
0
0
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3323216 Finder 40.31.8.048.0000 PCB relay 48 V AC 10 A 1 change-over 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3323216 Finder 40.31.8.048.0000 PCB relay 48 V AC 10 A 1 change-over 1 pc(s) Piece
Description
Plug-in/PCB relay 1 CO contact (AgNi) for 10 A / 250 V AC, contact pin grid: 3.5 mm coil data 48 V AC, 1.2 VA, 1350 Ohm, relay protection type: RT II.
