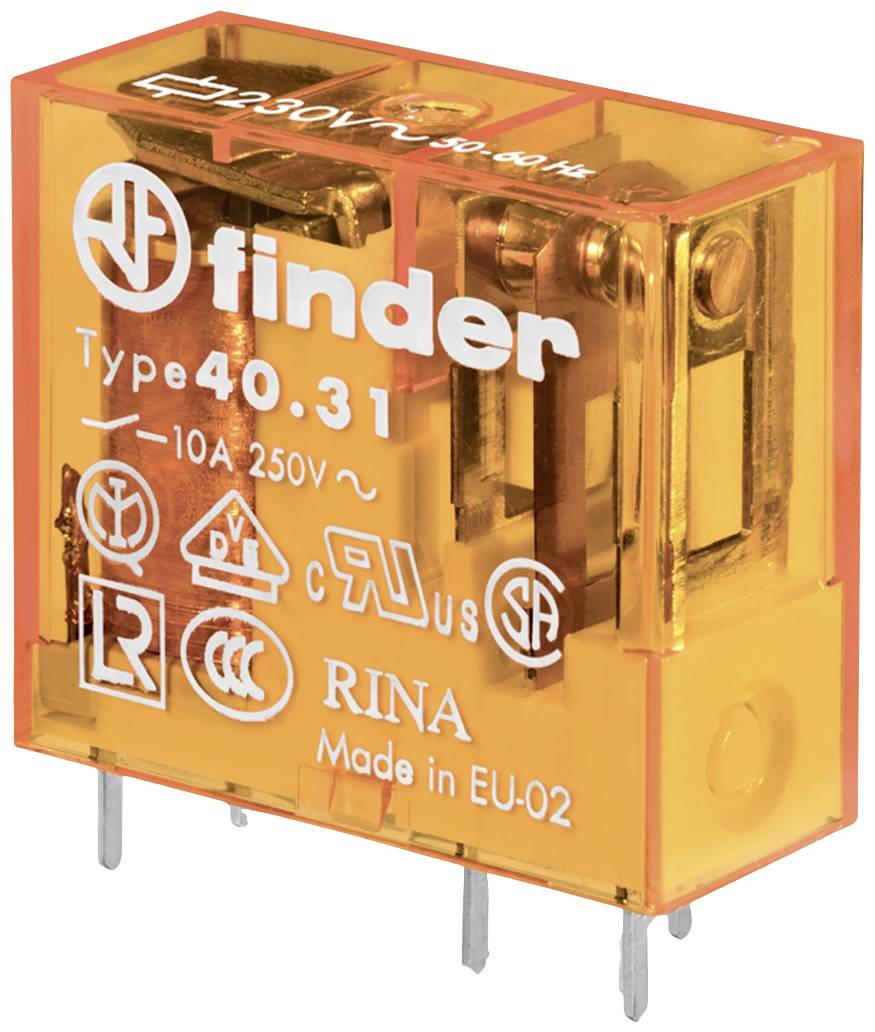

Finder 40.31.8.230.0000 PCB relay 230 V AC 12 A 1 change-over 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
PCB relay
Coil nominal voltage
230 V AC
Control mode
monostable, 1 coil
Contact type
1 change-over
Technical specifications
- Packaging type
Piece
- Product type
PCB relay
- Type
40.31.8.230.0000
- Coil nominal voltage
230 V AC
- Max. pick-up voltage
230 V AC
- Control mode
monostable, 1 coil
- Coil voltage rating
1.2 VA
- Contact type
1 change-over
- Contact material
AgNi
- Switching voltage (max.)
250 V AC
- Switching current (max.)
12 A
- Connection
Jack connector
IP20
- Width
12.4 mm
- Height
25 mm
- Depth
29 mm
- Dim
(W x H x D) 12.4 x 25 x 29 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
12 A
12.4 mm
25 mm
29 mm
FALSE
Polarity free
Mono stable
FALSE
Single contact
FALSE
Plug-in connection
230-230 V
230-230 V
Untreated
IP20
FALSE
Other
AC
0
0
1
Thermoplastic
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3219428 Finder 40.31.8.230.0000 PCB relay 230 V AC 12 A 1 change-over 1 pc(s) Piece
Description
Plug-in/PCB relay 1 CO contact (AgNi) for 12 A / 250 V AC, contact pin grid: 3.5 mm coil data 230 V AC, 1.2 VA, 28000 Ohm, relay protection type: RT II.
