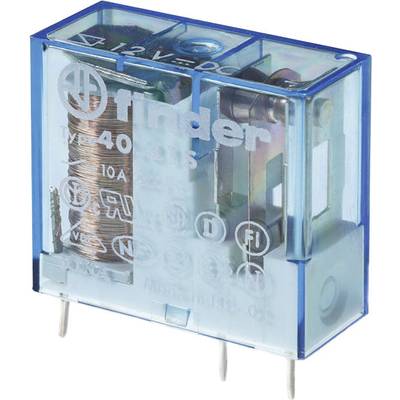

Finder 40.31.9.012.0301 PCB relay 12 V DC 10 A 1 maker 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB relay
Coil nominal voltage
12 V DC
Contact type
1 maker
Switching current (max.)
10 A
Connection
Connector
Datasheet (PDF)
54 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.19
5
6% = € 0.27
€ 3.92
10
9% = € 0.38
€ 3.81
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.19 / piece)
€
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polar
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: No.
- Product type
PCB relay
- Type
40.31.9.012.0301
- Coil nominal voltage
12 V DC
- Contact type
1 maker
- Switching current (max.)
10 A
- Connection
Connector
IP67
- Width
12.4 mm
- Height
25 mm
- Depth
29 mm
- Dim
(W x H x D) 12.4 x 25 x 29 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3323390 Finder 40.31.9.012.0301 PCB relay 12 V DC 10 A 1 maker 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3323390 Finder 40.31.9.012.0301 PCB relay 12 V DC 10 A 1 maker 1 pc(s)
Description
Plug-in/PCB relay 1 NO (AgNi) for 10 A / 250 V AC, contact pin grid: 3.5 mm coil data 12 V DC, 0.65 W, 220 Ohm, relay protection type: RT III.
